Default Anatol solutions 36" belt 16' long electric dryer with extentions

State/Province: Pennsylvania
City: STATE COLLEGE
ANATOL SOLUTIONS 36" BELT X 16' LONG ELECTRIC DRYER. ASKING $3999.00 OR BEST OFFER


we bought it brand new 7 years ago and we are the only ones to own it. please ask if you want to see more pictures. for some reason they are not uploading on here


The Anatol Solutions of screen printing electric dryers are ideal. The Solutions series dryers are perfect for textile printers looking for an efficient and affordable complement to their output demands. Being sold is a Anatol Solution 36 inch belt electric dryer. It has everything you need to be a sucessful printer. This conveyor dryer was very easy to operate. We were able to successfully dry and cure items, screen printed with both Plastisol, as well as water based inks with no problem. The screen printed items included: Very lightweight to heavyweight cotton and Poly-Cotton blended T's, Fleece Hoodies, Sweatpants, Shorts, Tanks, Jerseys, Knit Hats, Towels, Blankets, Polos, Canvas Banners, and a whole bunch of more items. it does it all.


The temperature and speed controls work great and may vary, depending on the material you're printing on. We randomly throughout the year will wash test clothing samples, to make sure each run was being properly cured and report great success with this dryer.


This is a very high-quality Conveyor Dryer and is capable of accommodating a very high volume of units; 400-500 pieces per hour, so it enabled us to immediately grow our business, thus paying for itself very quickly after only a couple of jobs.


We added a extension on each end and that enabled us to load more items, move a lot faster, and speed up the production process. By doing that, makes a huge difference in our production. We added 2'6" on both sides to make it a over all 16'. The origional dryer was only 11'. It also has a 36" wide belt too. If for some reason you dont want the extensions on there, then you can just take them off.


The condition of the dryer is in good shape. We had it for 7 years so there is some wear and tear on the outside of the dryer. The core of the dryer is in great shape and it will definitely do whatever job you need it to do. Anatol is a very dependable dryer and it should last you a long time. The reason why we are getting rid of the dryer is because we are upgrading to a bigger one since our business is getting bigger and bigger. We knew we were going to sell it so we just put in a new Drive Belt, Temp Control Board, Themo Cupler, and 4 Elements. Whoever buys this dryer should be able to use it for a long time without any problems. I promise you are getting a great deal and i wouldnt pass it up.



If you guys have any problems or concerns in the future, you guys could call us anytime and we will help you out. If you have any questions about the dryer now or want to see more pictures, please feel free to email me. Thanks and take care


* WE ARE CURRENTLY USING THIS DRYER AND IT WONT BE READY FOR DELIVERY OR PICK UP IN TILL THE FIRST WEEK OF SEPTEMBER. THE REASON FOR THIS IS BECAUSE IT TAKES 4 WEEKS FOR OUR NEW DRYER TO GET HERE.

SHIPPING: I HAVE PICK UP ONLY BUT IF YOU ARE INTERESTED IN IT AND YOU CANT PICK IT UP THEN IT WOULD BE YOUR RESPONABLITY TO HIRE A FREIGHT COMPANY TO SHIP IT TO YOU. IF YOU COULD PICK IT UP LOCALLY THEN THAT WOULD BE GREAT SINCE IT WILL SAVE YOU A BUNCH OF MONEY AND WE WONT HAVE TO SEND IT ON A FREIGHT TRUCK. WE HAVE TO SEND IT FREIGHT BECAUSE OF THE WEIGHT OF THE DRYER. THANKS


Superior Quality
Double skin construction


208v - 230v

56 AMPS

Single Phase

Digital Temperature Control

Adjustable Belt Speed

High efficiency thermal insulation

Enhanced air circulation

Ceramic heating elements

Wide teflon-coated firberglass belt driven by industrial grade variable DC motor

Programmable temperature controller




Solution Series Standard Features


Ceramic elements
Industrial grade DC motor-driven belt drive

Solid-state variable belt speed control

Programmable temperature controller (accuracy: +/- 1º)

Adjustable infeed/outfeed openings

Large heavy-duty conveyor rollers

Teflon-coated fiberglass belt

Double wall construction with galvanized interior

High efficiency thermal insulation

Heavy-duty multi-section construction

Adjustable level heat panels

Air-cooled control cabinet



Equipment Certification

European Committee for Standardization® (CE) and Underwriters Laboratories® (UL) compliant: Built to specifications established by both CE and UL



DIMENSIONS

36" belt (width)

5' in belt (added 2'6" extension from the origional dryer)

5' out belt (added 2'6" extension from the origional dryer)

6' chamber

Overall Length: 16' x 3'

4" exhaust pipe into a 20' x 6" pipe



BRAND NEW PARTS

Belt Drive

Temp Control Board

Thermo Cupler

4 Elements
Attached Thumbnails

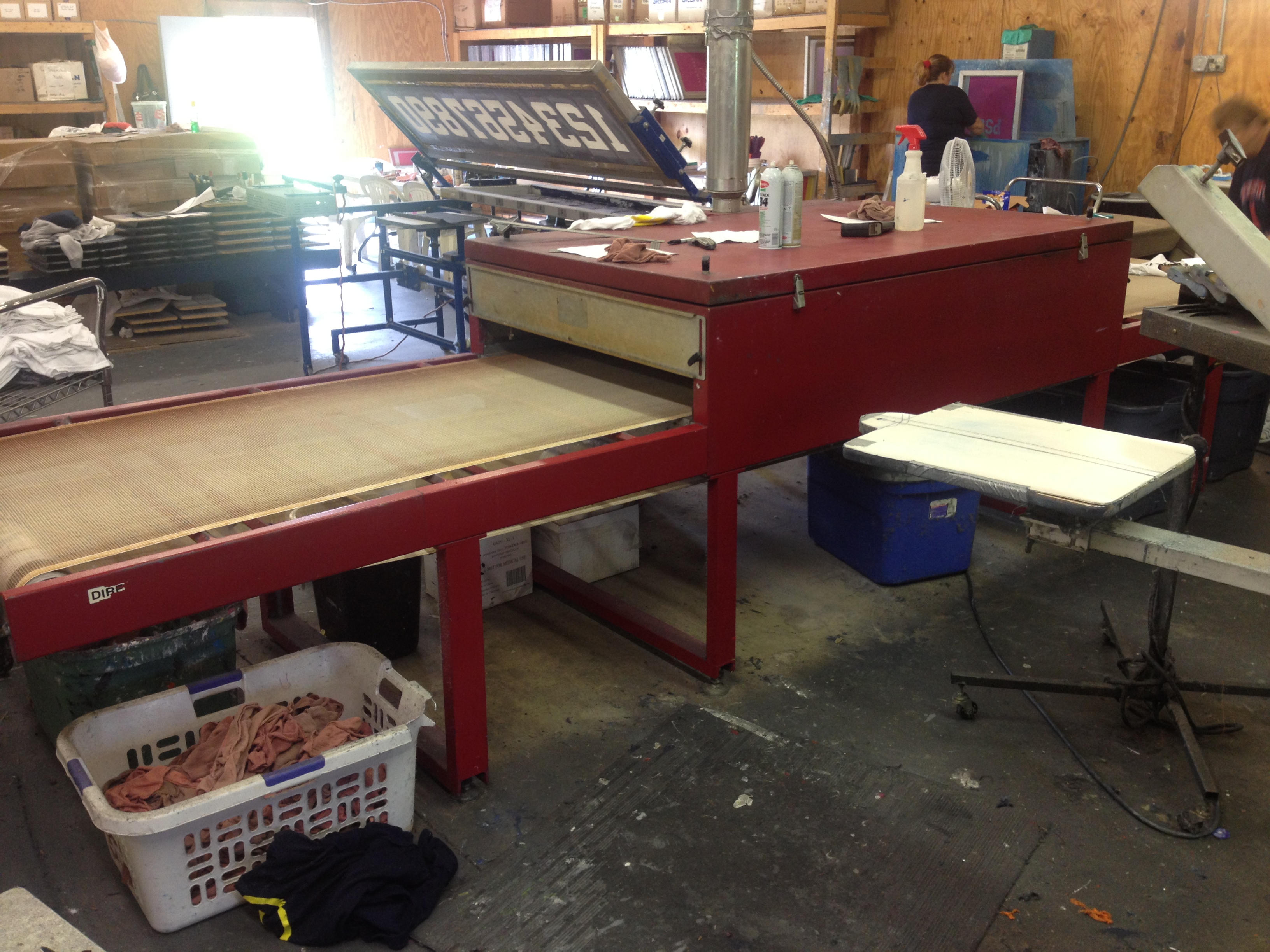

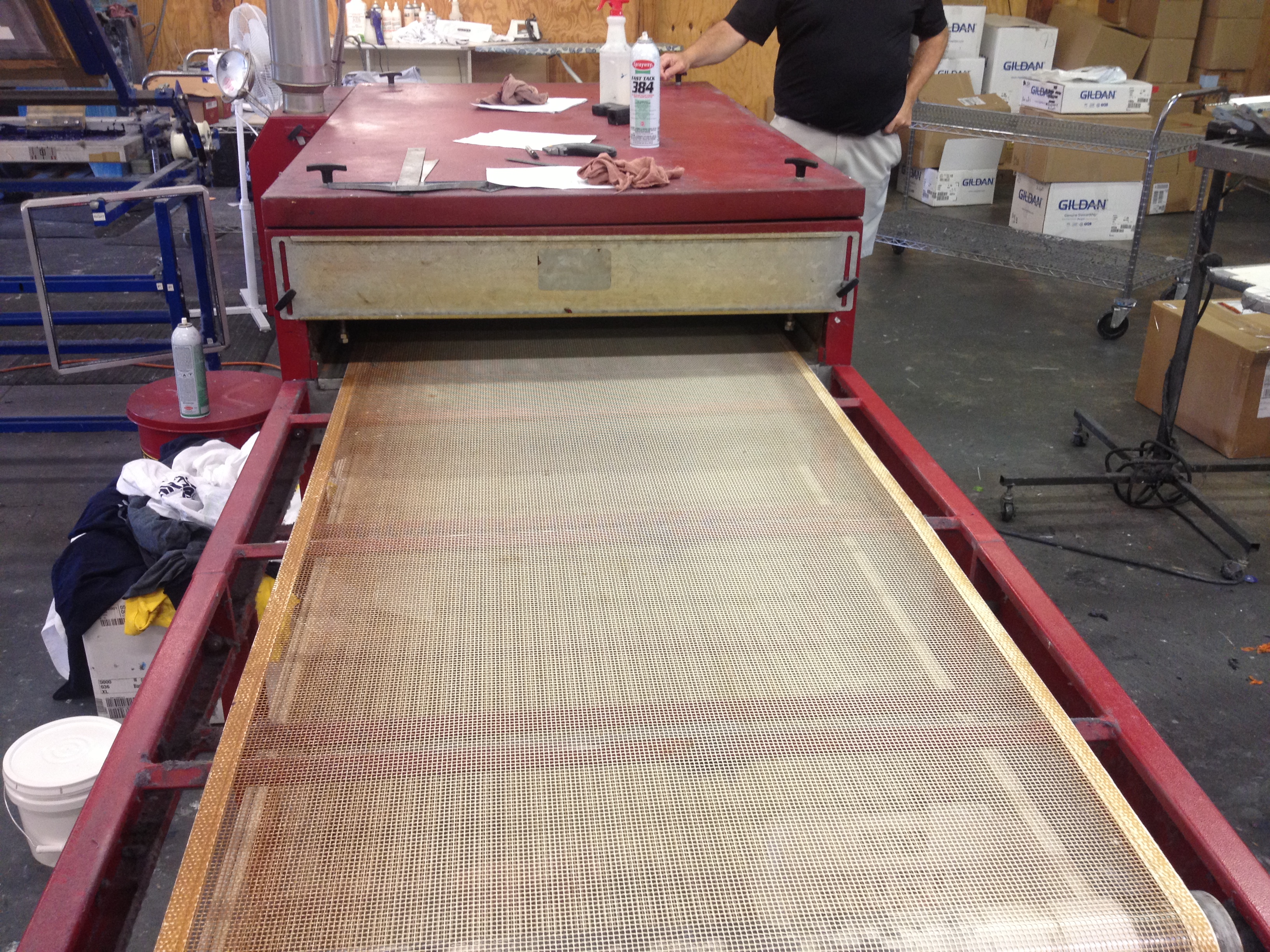

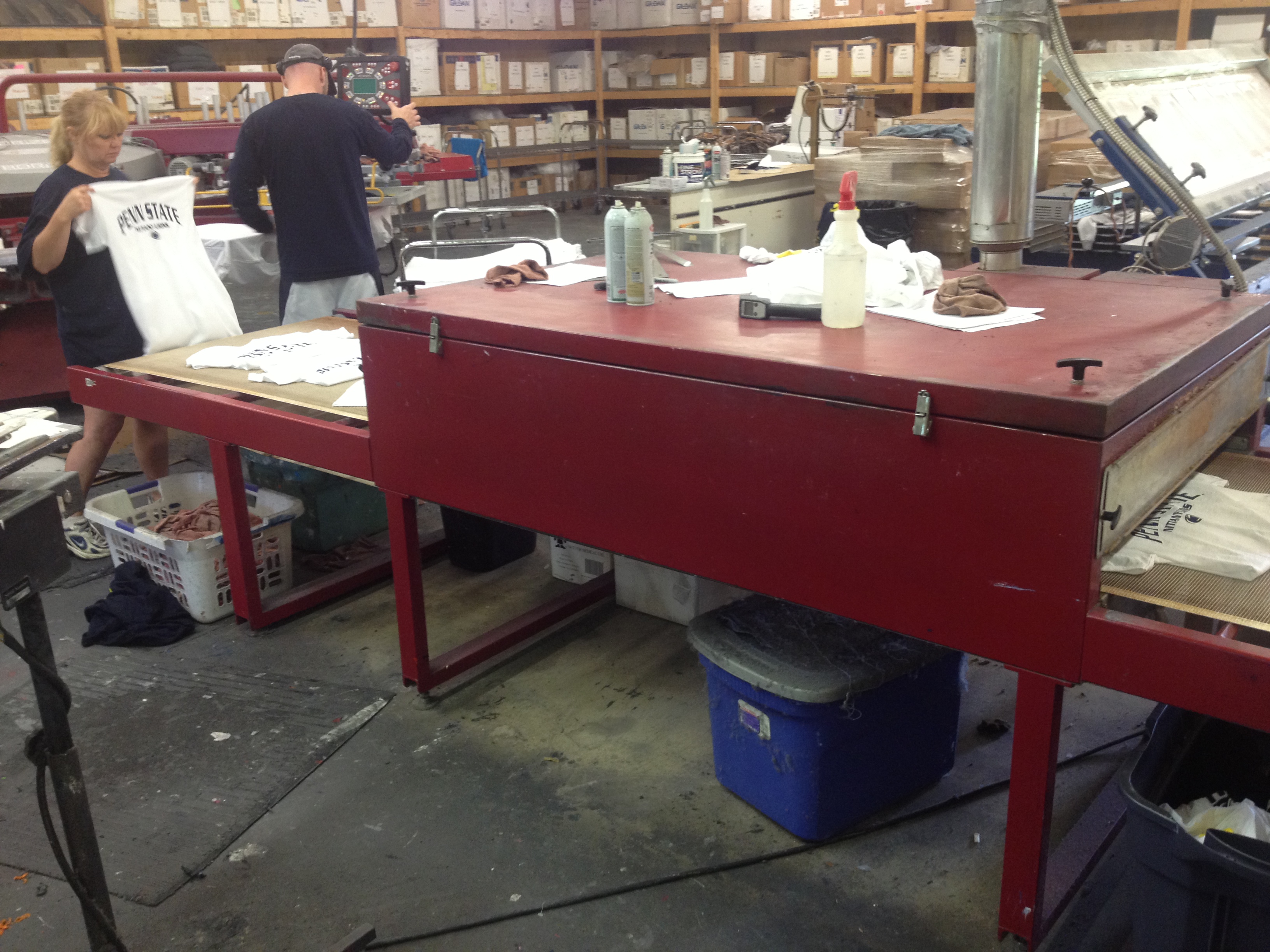

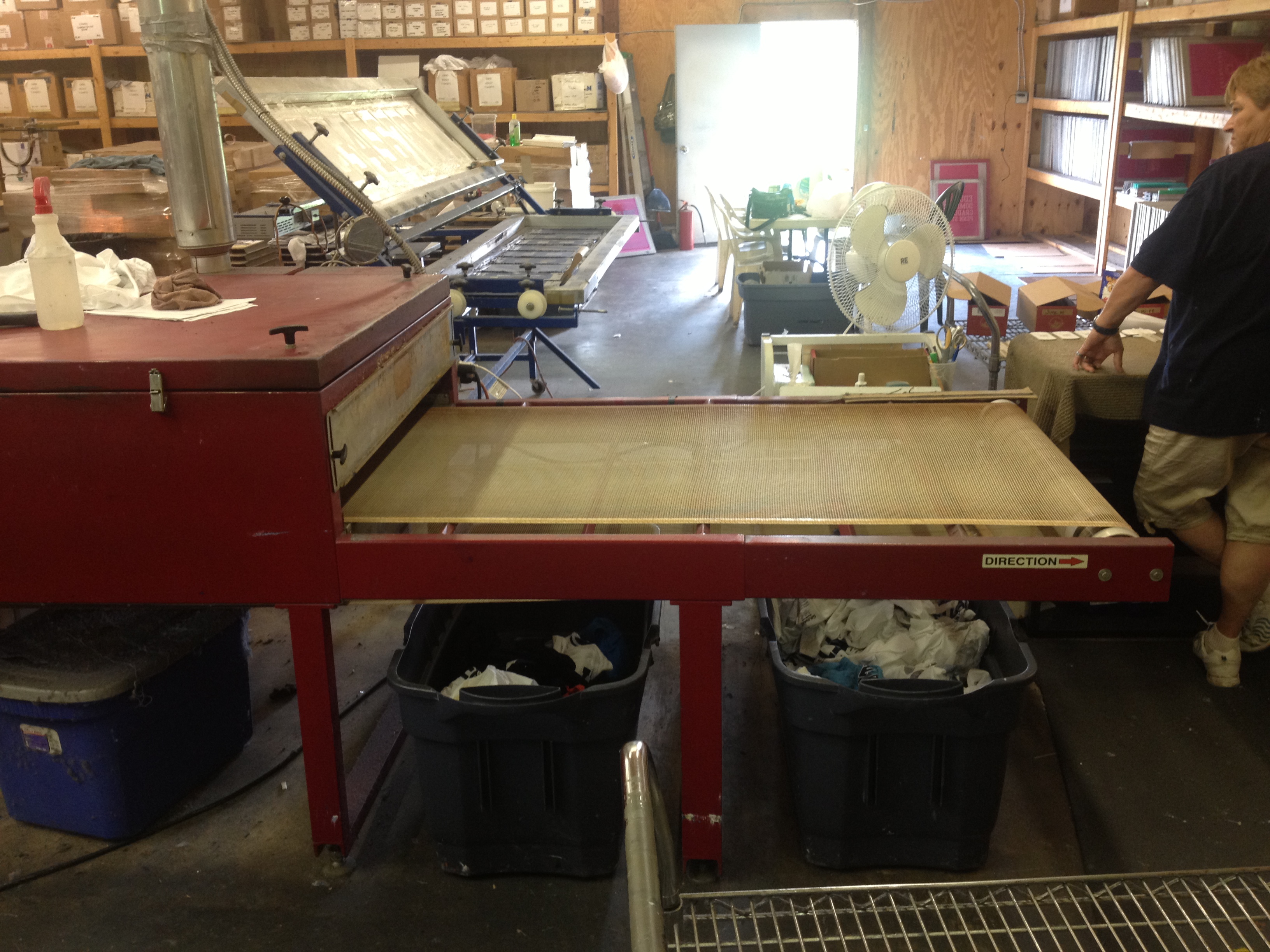

Anatol solutions 36" belt 16' long electric dryer with extentions-dryer-4.jpg   Anatol solutions 36" belt 16' long electric dryer with extentions-dryer-3.jpg   Anatol solutions 36" belt 16' long electric dryer with extentions-dryer-5.jpg   Anatol solutions 36" belt 16' long electric dryer with extentions-dryer1.jpg
