Commercial Embroidery Machine 1 Head 12 Needle BES 1216AC



Classified Ad Tools Search this Classified Ad
Old April 16th, 2011, 04:39 PM   #1 (permalink)
concepts concepts is offline
Junior Member
Join Date:
Mar 2011
Location:
NYC
Posts:
19
Liked:
0 times
Thumbs up Commercial Embroidery Machine 1 Head 12 Needle BES 1216AC

For Sale: Brother Commercial Embroidery Machine 1 Head 12 Needle BES 1216AC. To see the specs on this machine visit http://www.brother-usa.com/IndustSew...ctID=BE1201BAC Sale comes. Hoops included are a s follows 1 Jacket Back, 2 300x280 mm, 2 230x240mm, 1 Size 7, 1 Size 10, 1Size 13, 2 Size 16. Comes with all necessary tools, bobbins, needles, threads and extras.
$5000.00

BES-1216AC

FEATURES:
• Single-head cylinder arm
• 15 needles
• Automatic color change
• Quick-change 270° cap system
• Jumbo bobbin
• Cam-driven, single presser foot for fast, quit operation
• Noise reduction feed mechanism
• Automatic lubrication system
• Automatic top and bottom thread trimmers
• Maximum sewing speed of 1,200 rpm
• Adjustable tubular frame holder

• Narrow machine design: machine will fit through a 32" door opening (with table assemblies removed)
• Trace mode for verifying location of designs before sewing
• Built-in 3.5" floppy disk drive enables the machine to run as an independent stand-alone unit and able to read all popular
• embroidery machine formats
• Machine memory of 16 designs (a total of 27,000 stitches)
• Back up or move forward through the design in increments of 1, or 100 stitches or by colour changes
• Capable of sewing flat, tubular and finished cap items
• Memory retention after machine shut-off
AUTOMATIC LUBRICATION SYSTEM
Brothers unique wick oiling system significantly reduces machine maintenance downtime. Oil is poured into a conveniently located reservoir on the machine and a wick that is threaded through the internal workings of the sewing head delivers oil when and where it is needed, eliminating the time consuming task of oiling numerous, hard to reach locations.

SINGLE, CAM DRIVEN PRESSER FOOT
Developed by Brother, the cam-driven presser foot allows the machine to run faster and quieter. The precise movement of the cam reacts faster than the previous spring loaded technology and reduces the noisy pounding of the presser foot on the throat plate. The single presser foot also facilitates increased machine speed and less maintenance.

JUMBO BOBBIN
Maximize system productivity with fewer bobbin changes with the larger capacity, jumbo "M" style bobbins. Brother perfected the performance of the jumbo bobbin by designing the cams and gears inside the sewing head to accommodate the longer rotation of the larger bobbin.

EASY TO USE CONTROL PANEL
Start sewing faster with the single, logical commands found on the control panel. For example, the hoop feed button moves the pantograph out from under the needles for trouble free appliquι placement and easier loading and unloading of hoops.

MEMORY RETENTION
Resume stitching a partially complete design after the machine has been turned off, unplugged or even after a power failure. Shut the machine off to work with a customer, go home for the evening or even move the machine across town and never lose a stitch or go off registration - another Brother first.

INDIVIDUAL CAP FRAME ADJUSTMENT
Adjust the centre point of the cap on each head independently while it's in the frame and mounted on the machine. Eliminate off centre designs and time consuming framing adjustments with this advanced cap frame driver design.
12-needle embroidery head with double capacity rotary hook

Unbeatable quality embroidery in 12 different colours.
The double capacity rotary hook requires fewer bobbin changes, giving increased running time.
Compact machine, using only single head can be easily set up in narrow spaces.

Wider sewing area

The sewing area has been expanded to 450mm wide x 300mm high.
Large sized tubular material can also be sewn (tubular frames optional).


BES-1216AC Machine specifications
Machine type Single head cylinder arm
Number of needles 12
Maximum sewing speed 1,200 rpm
Network capability Connect multiple machines to one computer for networking.
Stitch length (0.1mm - 12.7mm)(0.004" - 0.5")
Rotary hook Jumbo "M" style bobbin.
Maximum field size
Flat
Tubular
Border X-axis "width", Y-axis "height"
450mm (17.7"), 300mm (11.8")
450mm (17.7"), 300mm (11.8")
450mm (17.7"), 300mm (11.8")
Wide area caps 360mm (14.2") , 85mm (3.3")
Semi wide cap frame (70mm x 180mm)
Power source/consumption Single phase 100V, 120V, 220V, 230V, 240V.
Dimensions At delivery: 850mm(33")(W) x 730mm(29")(L) x 1470mm(58")(H)
After setup: 1050mm(41")(W) x 1010mm(40")(L) x 1470mm(58")(H)
Weight 195kg, 430lbs.
Data Storage Media 3.5 " 2DD floppy disk (Tajima format)
3.5 " 2HD floppy disk which corresponds to Tajima format.
Attached Thumbnails

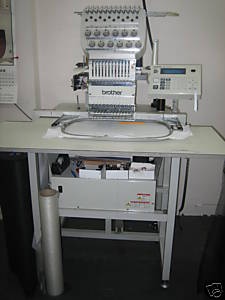

Commercial Embroidery Machine 1 Head 12 Needle BES 1216AC-emb-machine.jpg
Send a private message to concepts Contact
Old April 16th, 2011, 05:38 PM   #2 (permalink)
Fattyonamoped Fattyonamoped is offline
Member
Join Date:
Apr 2007
Posts:
77
Liked:
0 times
Default Re: Commercial Embroidery Machine 1 Head 12 Needle BES 1216AC

If you need me to write your description for you just let me know I only charge $15 an hour. Haha. You want to use my pics as well? Haha
