Hotronix Air Fusion Heat Press 16"x20" w/Pedestal - Commercial
State/Province:
California
City:
Montclair

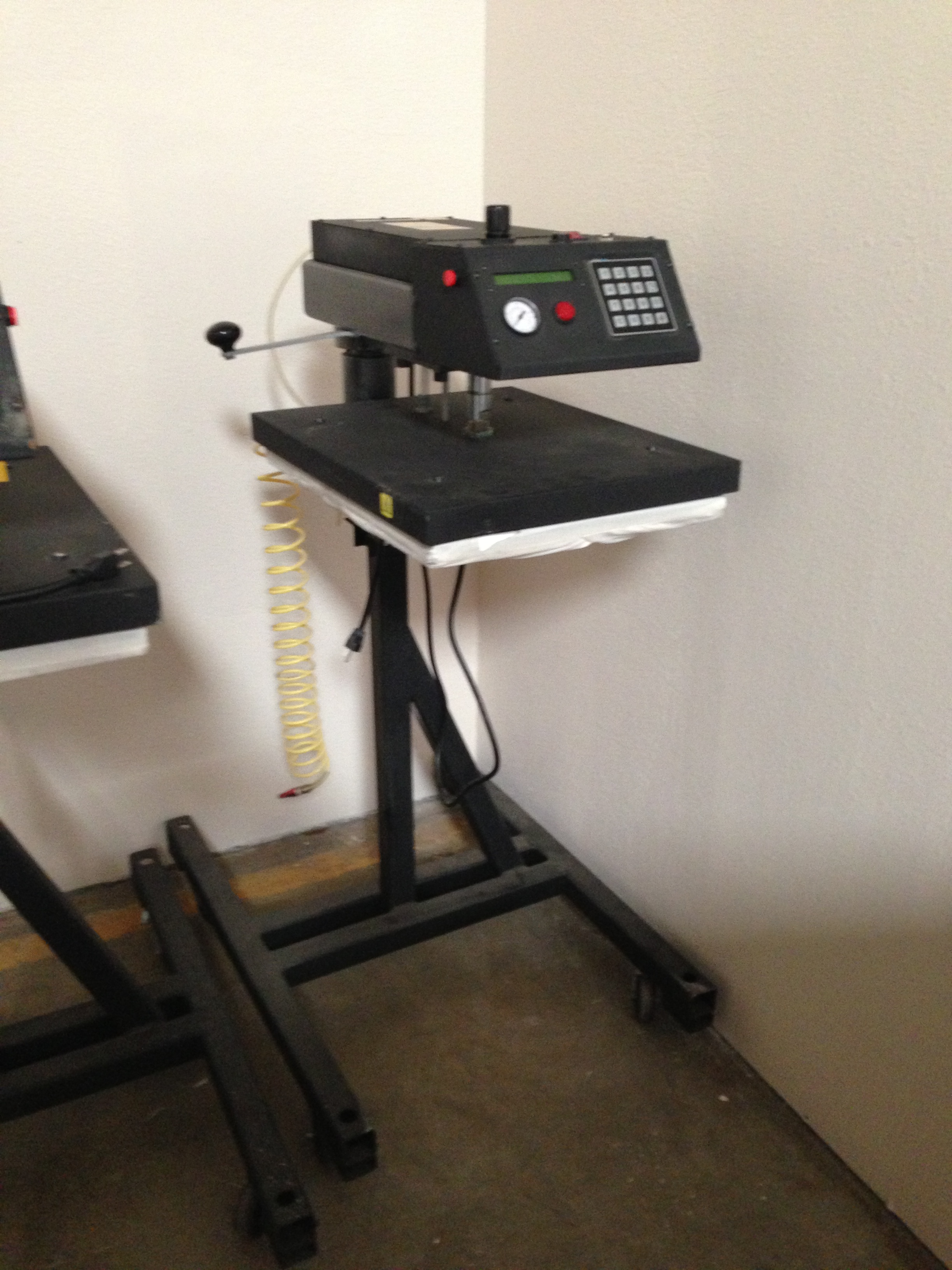

Hotronix Air Fusion Heat Press 16"x20" w/Pedestal - Commercial (Full Size T- Shirt Press) 2009 - $1895.00 Used
The new Air Fusion transforms the technologically advanced features of the Hotronixฎ Fusion into a pneumatic heat press for high volume and specialty decorators. Designed to increase throughput for faster production, the Air Fusion is equipped with a patented auto adjust pressure feature, which makes switching between garments of different thicknesses a breeze. A fully threadable platen allows the user to print on both the front and back of a shirt simply by rotating the garment without removing it from the platen. The adjustable stand is ideal for changing the height for multiple users and the hands free auto swing cuts down on operator fatigue.
The new Air Fusion is reliable and durable. It's designed to maximize production efficiency and make garment decorating easier than ever.
Features
16"x20: Heat Platen
Exclusive touch screen controller with new multi-swipe gestures
Data interface port for software upgrades
Fully digital time, temperature & pressure readouts
Automatic on/off setting
Multiple time and pressure settings for mixed media makes applications a breeze
Electro Pneumatic regulator that auto adjusts pressure for all recipes
Hands Free Auto Open, Auto Swing
Tap the foot pedal and the upper platen will swing into place!
Program and store hundreds of application settings
Program up to four different pressure settings for one application
Records number of pressing cycles done
Accepts items up to 1.75" thick
3/4" thick platen
120 PSI for heavy pressure application. Requires air compressor (not included) with minimum 1/2 horse power and 5 gallon hold tank. Uses 2.3 CFM
Quick Change lower platen with interchangeable platen options
Open design for easy load and maneuver of garments
Innovative EZ-On platen design eliminates the need for pillow or pads
User safe two-hand operation
Ergonomic adjustable stand
Corrosion free framework
Available in 240v for quick heat recovery technology Important for DTG users
UL/ULC/CE Approved
Lifetime warranty on heating element
120 volts, 1800 watts, 15 amps
240 volts, 2250 watts, 9.4 amps
Heat Press weight 152 Lbs
Shipping weight 245 Lbs
6 Month Warranty
Pre ss)
IMachineGroup
Montclair, CA
Jeff
800.567.0020 x1
|
|
|
|
