Default Kornit Breeze DTG Printer *PARTOUT*

State/Province: Arizona
City: Snowflake
We're parting out our Kornit Breeze after several years of loyal service. The Mainboard died, but everything else still works great.

You can buy these here: http://www.ebay.com/usr/themonahans

Parts List (use the attached PDF for reference):

Right Front Panel Assembly (33-PANL-0009)
*06-EBRD-0204 LCD Panel Board

33-AXIS-0019 The Cross-scan (x) Axis Assembly
*42-BELW-0004 921 Bellow
*06-EBRD-0002 Origin and Limit Sensor
*33-BUMP-0002 X Bumper Assembly
*42-SCRW-2020 Lead Screw
*36-HOUS-0021 Nut Housing
*39-BRAK-0130 Back Bellow Bracket
*39-BRAK-0131 Front Bellow Bracket
*42-BSCS-0015 Ball Screw End Support
*42-COUP-0014 Coupling
*42-BSCS-0016 Ball Bearing Fixed Support
*42-LMBR-0005 1540 mm Linear Rail & 2 LM Blocks + Support Rail + x2
*42-BEAR-0008 Bearing (Aluminum Case Unit Open SBR16UU Type)
*09-KEAS-0203-S Wired Y Motor

33-AXIS-0020 Scan Axis (Y) Assembly
*33-GEAR-0005 Scan Motor & Gear Assembly
*09-KEAS-0203-S Wired SCAN Motor for Breeze 921
*33-YSTG-0002 Ink Tanks Assembly (see page 14)
*06-EBRD-0002 Origin + Limit Sensor Assembled PCB
*42-LMBR-0011 920mm Linear Rail + 2 LM Blocks
*42-BEAR-0007 Aluminum Case bearing Unit Open SBR16UU Type
*42-BELT-1920 Belt 1980mm
*42-BELT-0004 Drive Belt (Small Timing Belt)

33-YSTG-0002 Scan Axis Ink Tanks, Main Board and Sprinkler Assemblies
*06-EBRD-0202 Head Board

Spray Sprinkler Assembly, Delrin+SST Parts (33-NVAL-0010)
*03-COIL-0001 24V DC 5W Valve Coil

Pneumatic Panel (33-ELEC-0003)
*09-KEAS-1228 Vacuum/Purge Pump incl. Connector/Cable for Service - Wired
*09-KEAS-0227-S Degassing pump - Wired
*33-SPRG-0011 Spray System Pressure Regulator
*23-UPGR-0035 Upgrade kit for Fixation Pump V3 Replacement

Maintenance Assembly (33-MAIN-0015)
*33-WIPR-0033 Wiper Assembly (Ink)

Secondary Pneumatic Panel Assembly (33-ELCS-0001)
*33-VACU-0013 Small Vacuum Cont. Assembly 921
*33-VACU-0012 921 Vacuum Container Assembly

Power Supplies
*06-PWSP-0203 Power Supply 12V SWS Series
*06-PWSP-0201 Power Supply 24V SWS Series
*06-PWSP-0202 Power Supply 36V SWS Series

Wiping System (33-WIPR-0027)


Motor Gear Assembly (33-GEAR-0005)

Electrical System V1 (33-ELEC-0002)
*Ink Pump 24V with Connector
*03-VALV-0021 Miniature One-way Check Valve #502

Electrical Upper Shelf Assembly (33-ELSH-0002)
*06-DRIV-0201 Driver for 2-Phase Hybrid Stepper
*23-UPGR-0022 Scan Axis Servo Driver Kit
*06-DRIV-0203 M415B Micro-stepping Driver
Attached Thumbnails

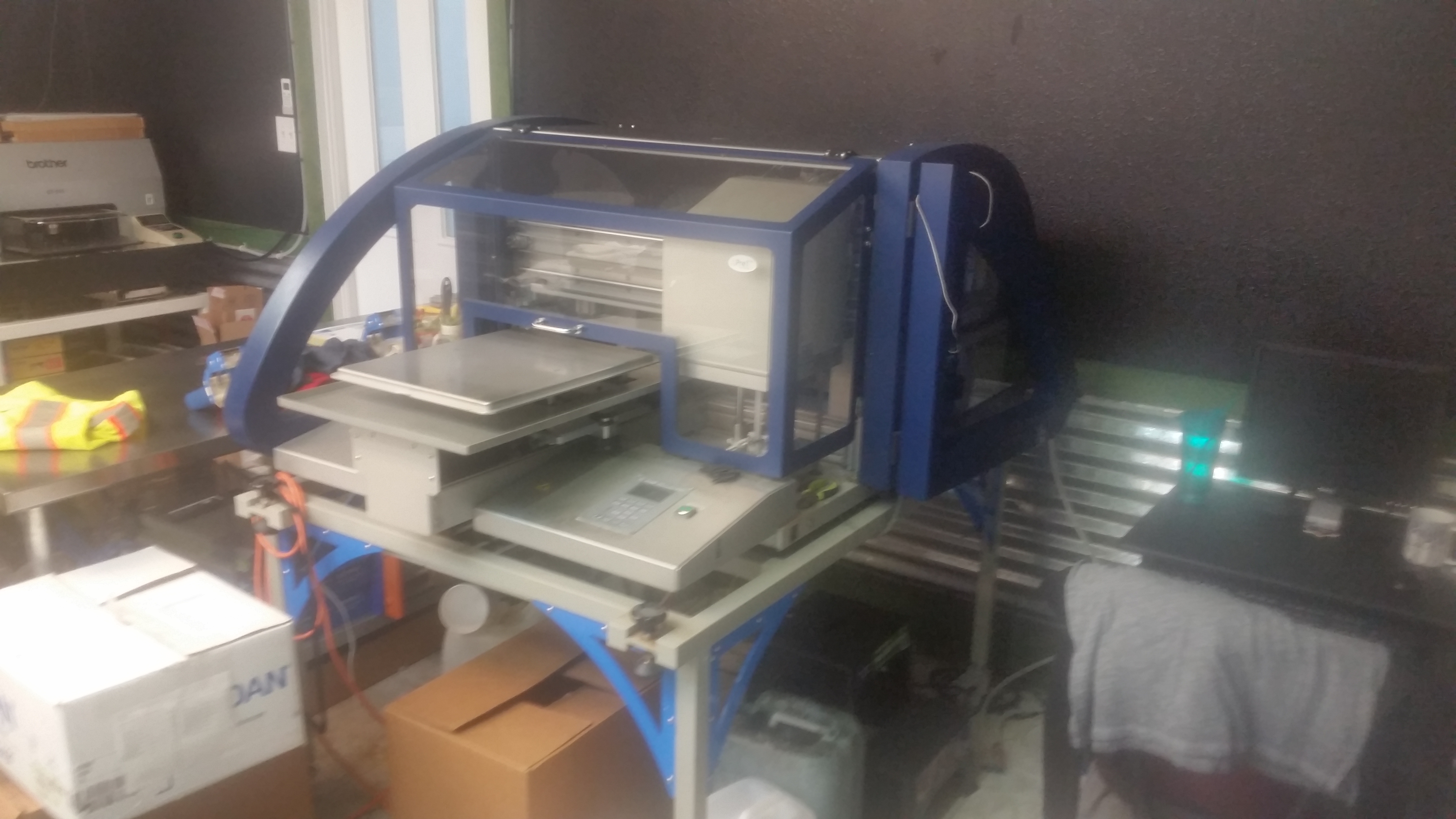

Kornit Breeze DTG Printer *PARTOUT*-20170413_140124.jpg
Attached Files
File Type: pdf _Kornit Breeze Parts - Small.pdf (1.47 MB, 296 views)
