Arrow The PrintAll - Combination Automatic Color Pad & Screen Printing System

State/Province: Outside the U.S./Canada
City: Truckee, CA
**SELLER REFURBISHED MACHINE**
COMPRESSOR INCLUDED!

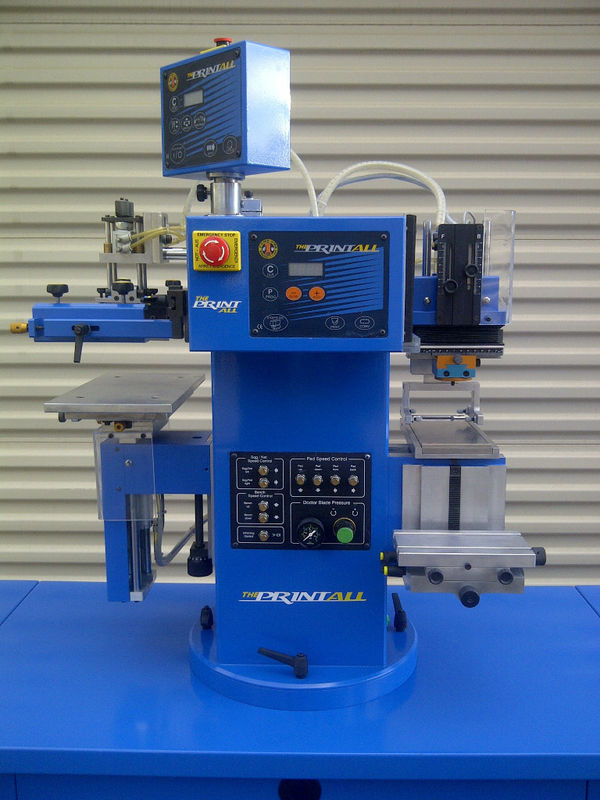

The PrintAll

Combination Automatic Pad (Expandable to 2 Colors) & Flat / Rotary ScreenPrinting Machine


THREE MACHINES IN ONE:
The PrintAll system is a combination automatic color pad and screen printing system, developed with the user in mind. Fast, precise and extremely easy to operate.
Pad printing, rotary and flat screen printing at up to 1200 pieces per hour in one compact machine. The PrintAll's simple multi-color registration system allows operators the easiest and most cost efficient method for decorating products with a formula that is tried and proven with thousands of operators worldwide.

The PrintAll is not just a unique printing machine, it is the complete decorating system!

PAD PRINTING SYSTEM:
Unusual shapes are easily decorated with incredibly fine detail. Plastics, glass, ceramics, wood, fabrics, metals and alike. When a marking need to stand out and detail must be placed on odd shaped surfaces like golf balls or operating dials.
The PrintAll pad print section delivers complete flexibility and speed.

PAD SPECIFICATIONS:
Speed - max. 1700 pieces per hour
Plate size - 100 x 130mm (4 x 5 1/4 inches)
Electro pneumatic drive system
Magnetic teflon coated inkwell
Quick release doctoring system
Expandable with 2 color option (not included)

FLAT / ROTARY SCREENPRINTING SYSTEM:
Large print areas and round objects are completely covered with the Printall screenprint section. Whether a coffee mug, or a sports bottle auto inflation ensures that surfaces are rigid for decorating with our built in multi-color registration device.
With an under 2 minute conversion from flat setups to round printing up to 360°.

FLAT / ROTARY SCREENPRINTING SPECIFICATIONS:
Speed - 1000 cycles per hour
Printing diameter 140mm (51/2 inches)
Soft start energiser valves
Optional Vacuum Table to hold flat objects
Pneumatic inflation system for soft sided objects (Rotary)
Screen size 470 x 770mm (181/2 x 10 5/8 inches)

THE PRINTALL OPTIONS:
• Hotfoil Stamping Conversion Kit
• Multi-Color Pad Conversion Kit
• Vaccuum Jigs and Beds

ONLINE CATALOGS:



PACKAGE INCLUDES:

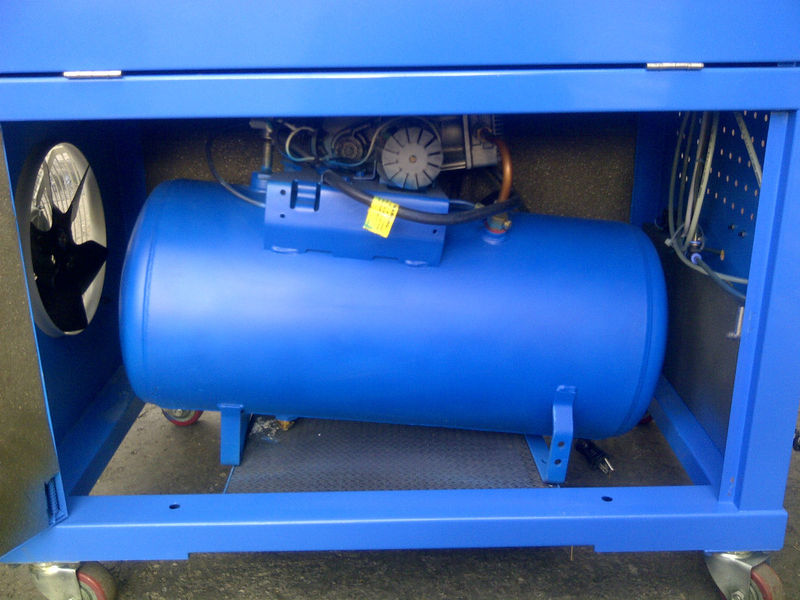

• Air Compressor
• Rotary Printing Attachment
• Exposure Unit with Vacuum Table for Burning Screens and Plates.
• 1 Mug Screen
• 1 Standard Screen
• Multiple Pads in Various Shapes/Sizes
• Pad Life
• Plates
• Capillary Film
• Extra Ceramic Ring for Magnetic Inkwell ($250 value)
• User Manual

This item is very clean and has been completely refurbished.

The plastic handle to open the compressor compartment is cracked and non-functional (inquire for details/pics).

I will provide training and initial setup (geographic limitations apply - please inquire) with 30 days of phone/email support after item is received by buyer.

I can help arrange shipping if necessary (entire item fits on a single skid/pallet).

This machine was purchase NEW (paid $23,000.00) in 2004 and was put into dry storage in 2009.

Final Auction Price is FOB Truckee, Ca (Zip Code 96161)

Thanks,
Mike
Attached Thumbnails
The PrintAll - Combination Automatic Color Pad & Screen Printing System-kgrhqrhjcme63-5ejg2boyrynspmw-60_3.jpg   The PrintAll - Combination Automatic Color Pad & Screen Printing System-kgrhqv-ose63yp1ugdboyqnon-kg-60_3.jpg   The PrintAll - Combination Automatic Color Pad & Screen Printing System-kgrhqfhjcee63-uptteboyqn-pymq-60_3.jpg   The PrintAll - Combination Automatic Color Pad & Screen Printing System-kgrhqr-oke63-r1qsrboyqoiqer-60_3.jpg
Send a private message to PlayaSerpent ContactReply & Quote
Old November 28th, 2011, 11:48 AM   #2 (permalink)
jitujain jitujain is offline
Junior Member
Join Date:
Nov 2011
Posts:
1
Liked:
0 times
Default Re: The PrintAll - Combination Automatic Color Pad & Screen Printing System

hello sir i want to used pad printing machine can you say me wat the price of...this...
Send a private message to jitujain ContactReply & Quote
Old November 30th, 2011, 02:16 AM   #3 (permalink)
soleilven soleilven is offline
Junior Member
Join Date:
Jul 2010
Location:
China
Posts:
7
Liked:
0 times
Default Re: The PrintAll - Combination Automatic Color Pad & Screen Printing System

We are the supplier of pad printer inkcup system(Alumium and Plastic material), includes the zirconia ceramic ring or tungsten carbide ring, if you are interested in, please contact us freely.

Email: [email address]
MSN: [email address]
Skype: soleilven
__________________
Ceramic Ring and Tungsten Carbide Ring for Pad Printer Inkcup System
Send a private message to soleilven ContactReply & Quote
