Default ScreenRack

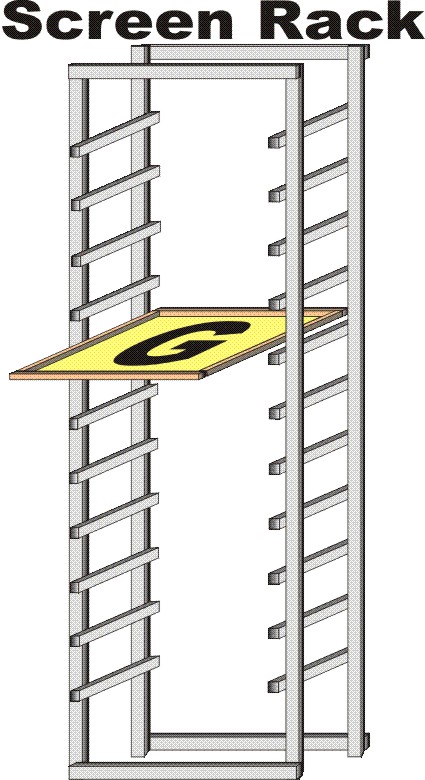

ScreenRack-screenrack.jpg I've come up with this version of a simple screenrack for all new printers that come here and need the info.
All you need is some 2x2 wood and some screws.
If your screen is 23x31, Make your racks width 24 and the depth 24 to 31 inches deep.
That will give you room to slide the screens in and out without jamming up. Also, the distance between each screen should be high enough from one another to let you slide the screen in and out without bumping each other. Somewhere around 4 or 5 inches should do just fine. Don't stack your screens on top of one another. You need that space to allow air to move freely around the screens.

Good Luck....I hope this helps.......


.
