Default Two Insta Graphic Model 158 Auto Release Heat Presses For Sale

State/Province: California
City: Sun Valley

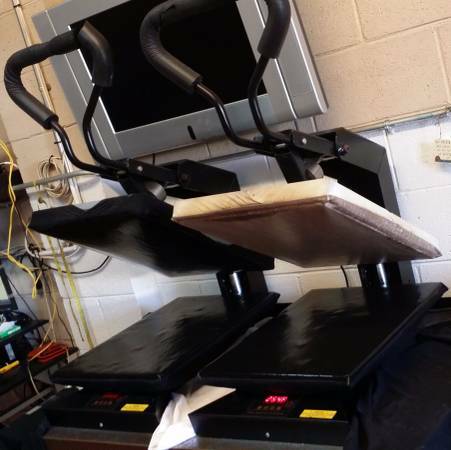

I have 2 x Insta Graphic Auto Release Heat Presses for sale:

INSTA 15" X 20" MODEL 158
FLAT CLAMSHELL HEAT PRESS MACHINE WITH AUTO RELEASE

1 is in perfect working order
the other is heating/working great except recently doesn't stay closed. (Probably a magnet issue that holds the lever down). If you're handy you can fix it. The company warehouse is located in Anaheim. Quick visit will fix this.

Asking $1500 for both together OBO
MUST SELL ASAP

http://www.ebay.com/itm/like/1214475...&ul_noapp=true

SPECS:

Insta's Model 158 Digital Auto Release heat press offers one of the major benefits of an automatic machine - the auto-open feature - in the lightweight, lower cost, ergonomic design of a manual clamshell heat press. The Model 158 meets the demands of today's busy retail environment and is also a practical solution to use as a post-curing agent for the expanding digital direct-to-garment marketplace.

Auto-Release

Following in the tradition of Insta's reputation for quality, the Model 158 includes an ergonomic, compact clamshell style and boasts a time maximizing auto-release feature. After the operator closes the machine, the Model 158 will automatically open once the pre-set time has elapsed. This allows the operator to maximize his/her time while the transfer is dwelling, without having to worry about burning the garment.



FEATURES

1. Auto-Open
With the use of a strategically placed electromagnet, the upper platen automatically releases at the end of the time cycle, without the use of an air compressor.

2. Compact Design

This clamshell's sleek profile and compact design make it an ideal machine for use in areas with limited work space.

3. Over the Center Pressure Distribution

Its pressure source is strategically placed over the center of the upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy duty distribution of pressure that is unmatched by other heat presses in the market today.

4. Cast-In Tubular Heating Element

The tubular heating element is cast into the aluminum upper platen, heating the metal from within. The element is coiled throughout the upper platen to provide a reliable and even circulation of heat out to all corners.

Specifications

Time maximizing auto open feature without the use of an air compressor Auto release feature eliminates the risk of over-pressing garments.
Protective heat shroud.
One piece handle-assembly.
Adjustable pressure control.

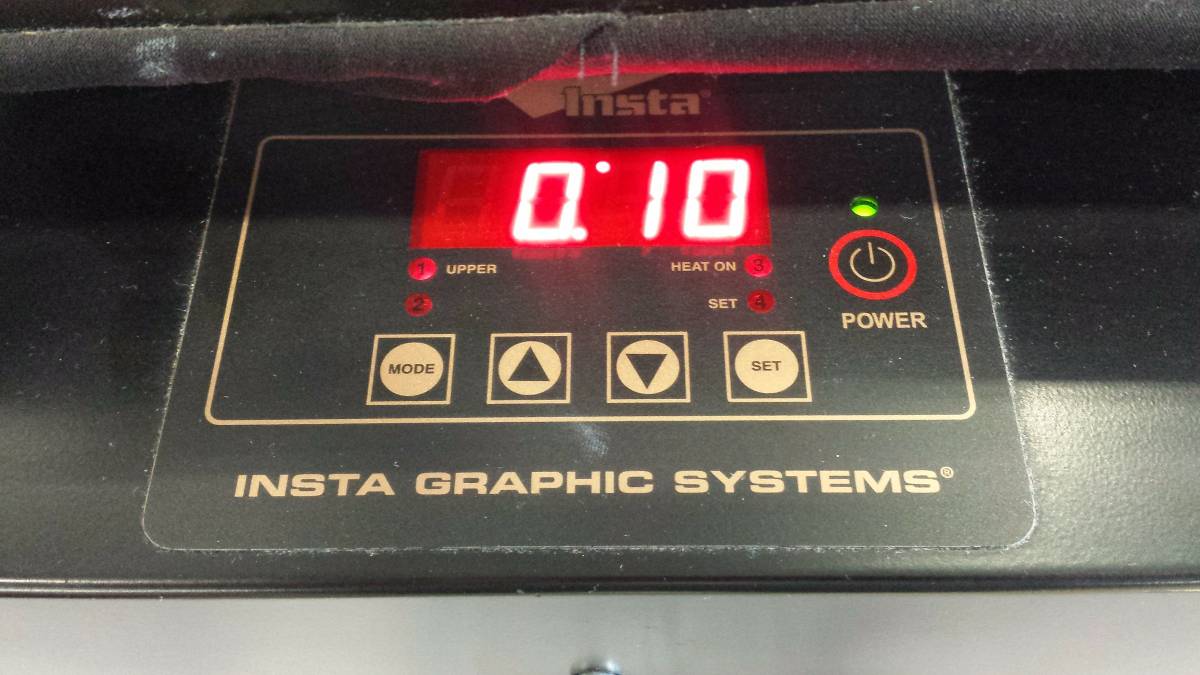

Integrated digital controller which features controls for time, temperature (Fahrenheit or Centigrade) &
cycle counter.
45 ̊ machine opening is designed for easy placement & removal of garments.
Equipped with a foam grip handle, safety tape & a 3 second pre-warning for safety.
Warranty - Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor.
UL, CuL & CE approved. RoHS/WEE compliant.
Made in the USA
Working Space:

Depth: 25" (63.5 cm)
Width: 35.5" (90.17 cm)
Height: 28.5" (72.39 cm)
Power: 120 volt - 1750 Watts, 14.6 Amps
Platen Size: 15"x20" standard (38.1 x 50.8 cm)
Shipping Weight: 131 lbs. (59.4 kilos)
Attached Thumbnails

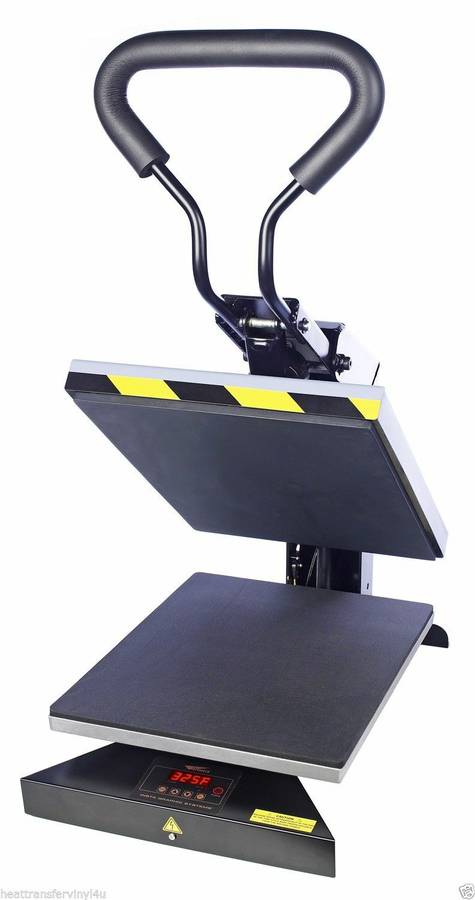

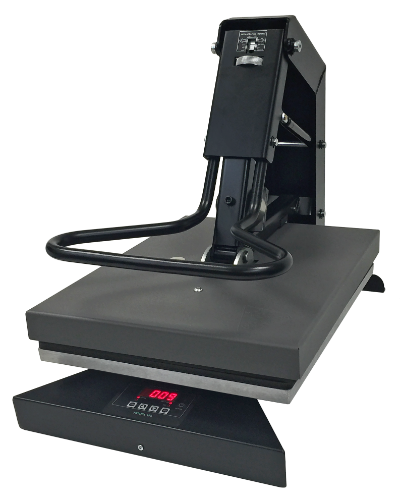

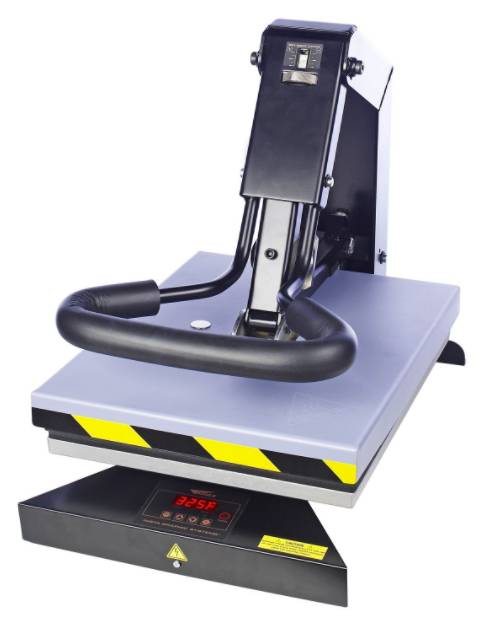

Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-00505_gds8u2kv3og_1200x900.jpg   Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-00b0b_ldxglvvgers_1200x900.jpg   Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-00o0o_agx9ydbf37v_1200x900.jpg   Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-00909_dmrbd34eo5_1200x900.jpg   Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-01717_dtg3wpftqft_1200x900.jpg   Two Insta Graphic Model 158 Auto Release Heat Presses For Sale-image003_comp.png
