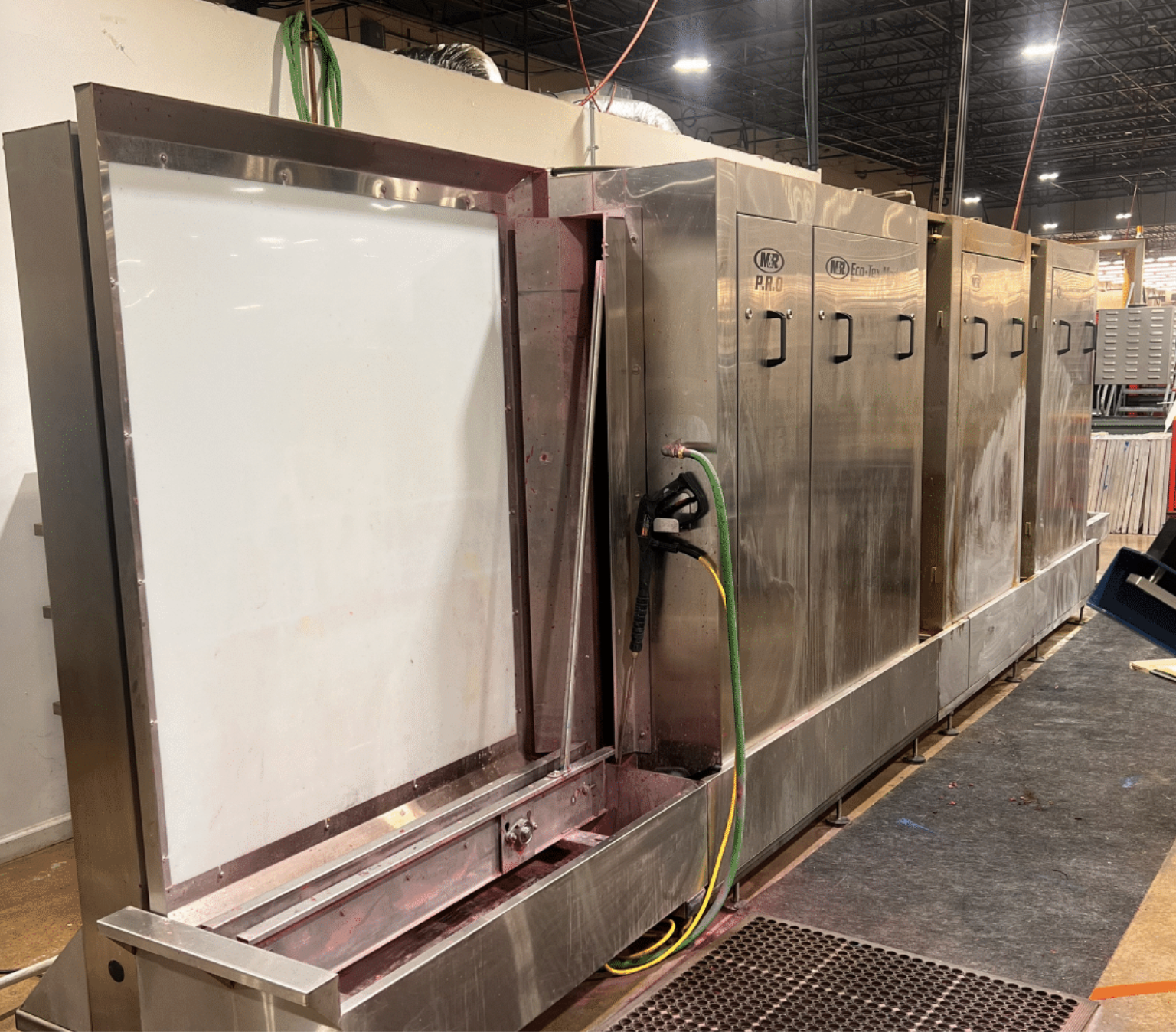

M & R Eco-Tex Complete 3 Chamber System

M & R Eco-Tex Complete 3 Chamber System

Clean up to 450 screens in an 8 hr. shift with one operator
Accepts screen sizes up to 140 x 91 cm (55” x 36”)
Three modules capture and recirculate chemicals for economic and environmental benefits

Over $65,000 in savings - compared to new

serial #462247372E
year 2021
230V, 3 PHASE, 35 AMPS

Model Specification

Eco-Tex Modular (Triple Module)
Air @ 6.89 bar (100 psi) 142 l/min (5 cfm)
Electrical Requirements Combined Electrical Specs: 208/230V, 3 ph, 107 A, 50/60Hz, 26 kW
Power Drop 1: Ink Removal Module: 208/230 V, 3 ph, 35 A
Power Drop 2: Reclaim Module: 208/230 V, 3 ph, 35 A
Power Drop 3: Power Rinse Module: 208/230 V, 3 ph, 37 A
Exhaust Requirements 10 cm (4") ducts @2
Maximum Screen Frame Size 140 x 91 cm (55” x 36”)
Overall Size (W x D x H) 684 x 104 x 206 cm (265.5" x 41.0" x 81.0")
Shipping Weight 2268 kg (5000 lb)

Master Frame that allows this unit to handle 2 screens

contact
Dave McLain
Screen Printing Products Inc.
925-989-6615
or
Brian 619-818-6117
