Sep 06, 2026 🌟 Turn-Key 2012 M&R Auto Press Line & 12ft Gas Dryer Setup — Ultra-Low Hours!
Save months of sourcing and over $50,000 compared to buying new. This is a complete, pristine, exceptionally low-hour automatic production line located in the Columbus, Ohio area. Perfect for a manual shop looking to scale instantly or an existing automatic shop expanding its capacity.
💰 Pricing & Package Options
OPTION A: The Complete "Take It All" Package Deal — $49,500 (Est. Commercial Financing: $1,076 / mo with $0 Down upfront on a 60-month lease-to-own structure).
Take EVERYTHING: The M&R Press with upgraded winged flood bars, Reno-HW Flash, Ingersoll Rand TAS Compressor, Interchange 12ft Gas Dryer with spare belt, all 24 custom aluminum pallets, Environmental Air Filter, and the full wall lot of aluminum frames.
OPTION B: Individual Component A La Carte Pricing:
2012 M&R Diamondback S Press + M&R Reno Flash + Upgraded Winged Flood Bars: $22,500 (Note: Requires a 3-phase compressor like the IR unit below to operate).
2012 Interchange MD-8 Gas Conveyor Dryer (12ft Heat / 56" Dual Belt): $15,500
Ingersoll Rand UP6-7.5TAS Rotary Screw Compressor (Built-in Air Dryer): $4,500
📋 Individual Item Specifications

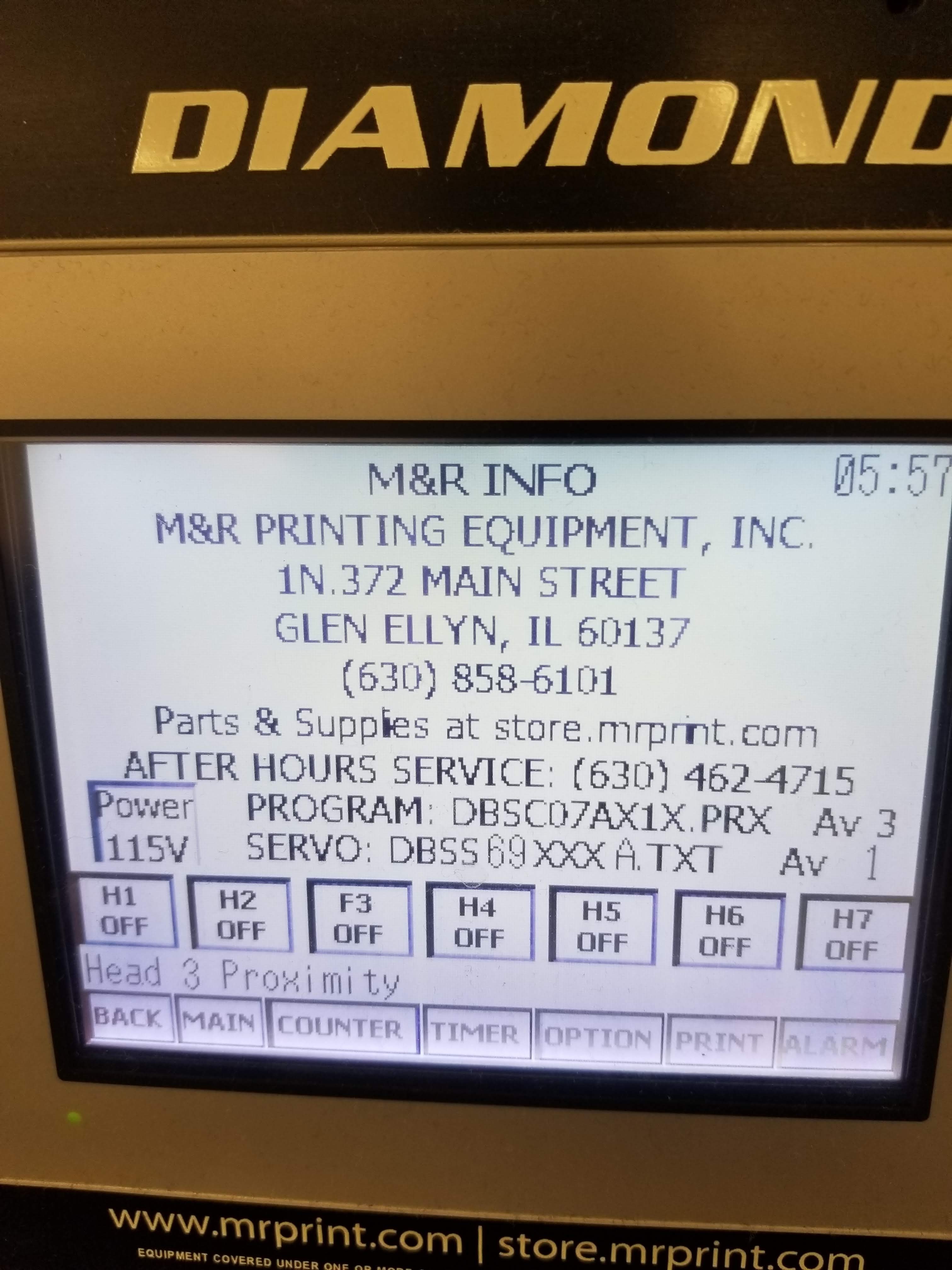

1️⃣ 2012 M&R Diamondback S Automatic Press (6-Color / 8-Station)
Model Code: DBPS161808061016A (Pneumatic print heads / AC Electric Servo Indexer).
Ultra-Low Use: Only 75,854 total lifetime impressions on the digital counter. Barely broken in!
Factory Upgrade Feature: Custom pre-wired and programmed by M&R from the factory to allow the plug-and-play addition of a 7th print head module at a later date.
Tooling Inclusions: Swapped seamlessly to upgraded winged floodbars to channel ink continuously. Includes 6 double-notch aluminum squeegee holders with 75-durometer green rubber blades, foot pedal skip-shirt operator, and original manuals.
Power Advantage: Runs on standard 115V single-phase power (10 FLA), making it highly flexible for non-industrial or retail spaces.
2️⃣ 2012 M&R Reno-HW Infrared Flash Cure Unit
Model Code: REHW18182016A (High-Wattage 18" x 18" Variant).
Smart Sensors: Integrated optical platen proximity sensor fires heat precisely when the press rotates into place, protecting garments and saving energy. Runs on 230V single-phase power.
3️⃣ 2012 Interchange MD-8 Gas Conveyor Dryer (12ft Heat / 56" Dual Belt)
Chamber Setup: 12 feet of high-velocity heat tunnel (3 factory-joined 4ft modular sections) with 4-foot infeed/outfeed extensions (approx. 20ft overall footprint).
Dual-Belt Design: Features two independent 28" wide belts running side-by-side with separate speed controls. Run different garment speeds simultaneously!
Premium Belt Protection Bundle: One belt is brand new, the second is in solid working shape, PLUS an extra spare 28" replacement belt is included in the sale (an $1,800 value in high-grade mesh alone).
Fuel & Air: Natural Gas configuration (250,000 BTU). Features a 3 HP fan utilizing a patented air deflector recycling system to drastically lower monthly utility bills.
4️⃣ Ingersoll Rand UP6-7.5TAS Rotary Screw Compressor
Model Number: UP6-7.5TAS-125W/D (Continuous duty cycle, fully enclosed quiet 69 dB design).
Total Air System (TAS): Features an integrated cycling refrigerated air dryer and built-in filtration to deliver bone-dry air, protecting your press's pneumatic valves.
Specs: 7.5 HP motor delivering 28 CFM at 125 max PSI on an 80-gallon horizontal tank. 13,437 running hours with documented local service history.
5️⃣ High-Value Production Accessories Included in Full Bundle

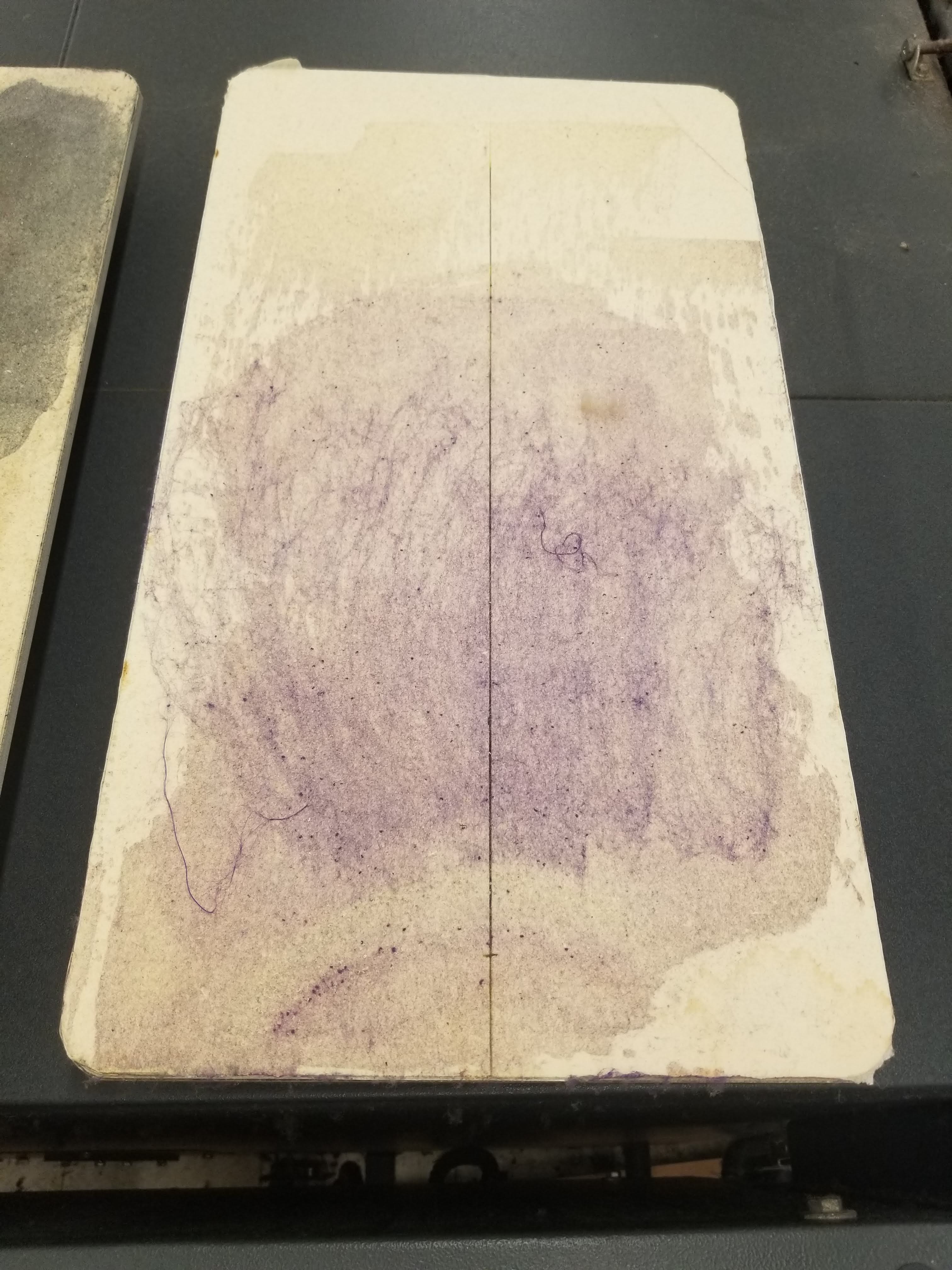

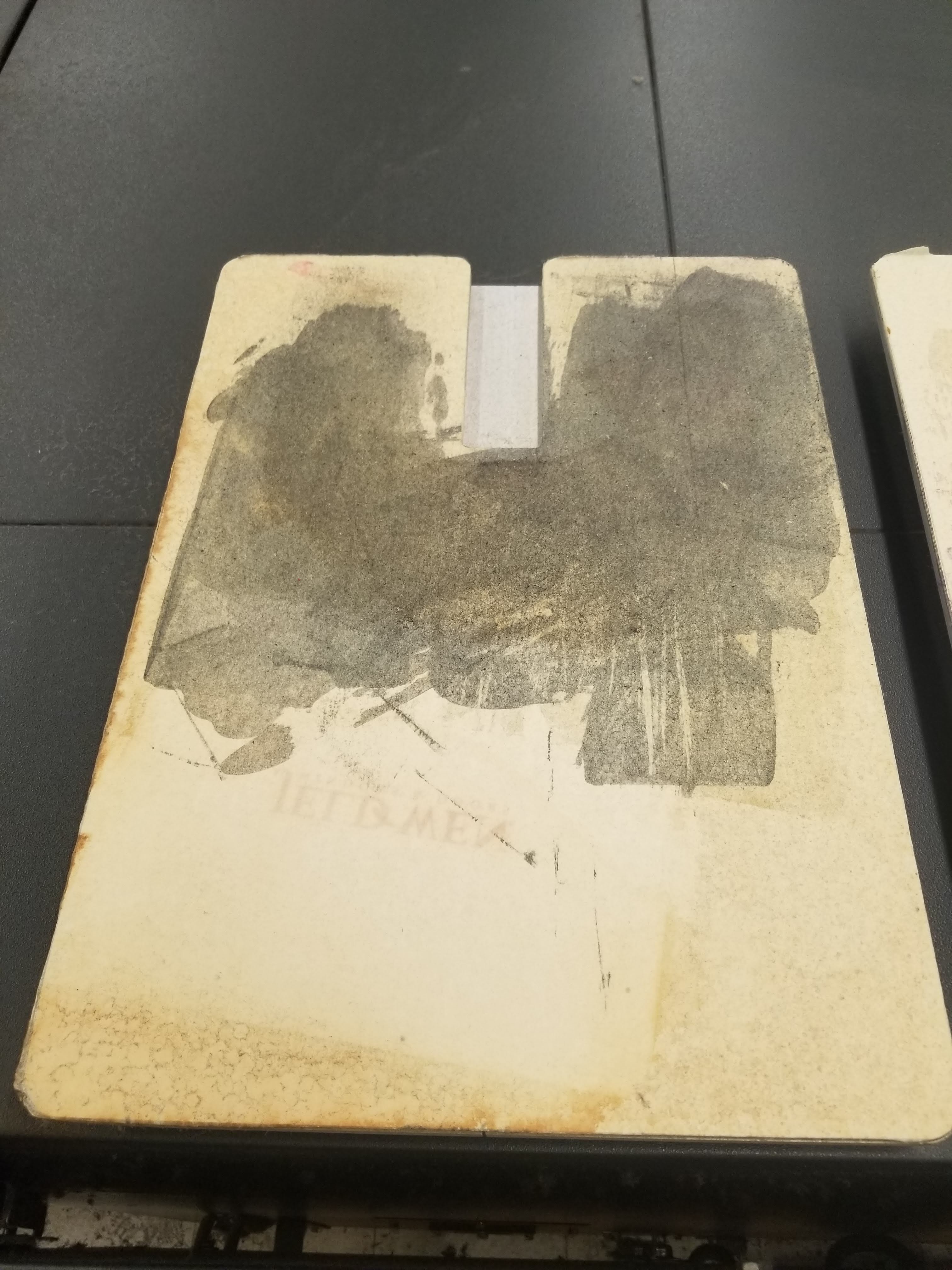

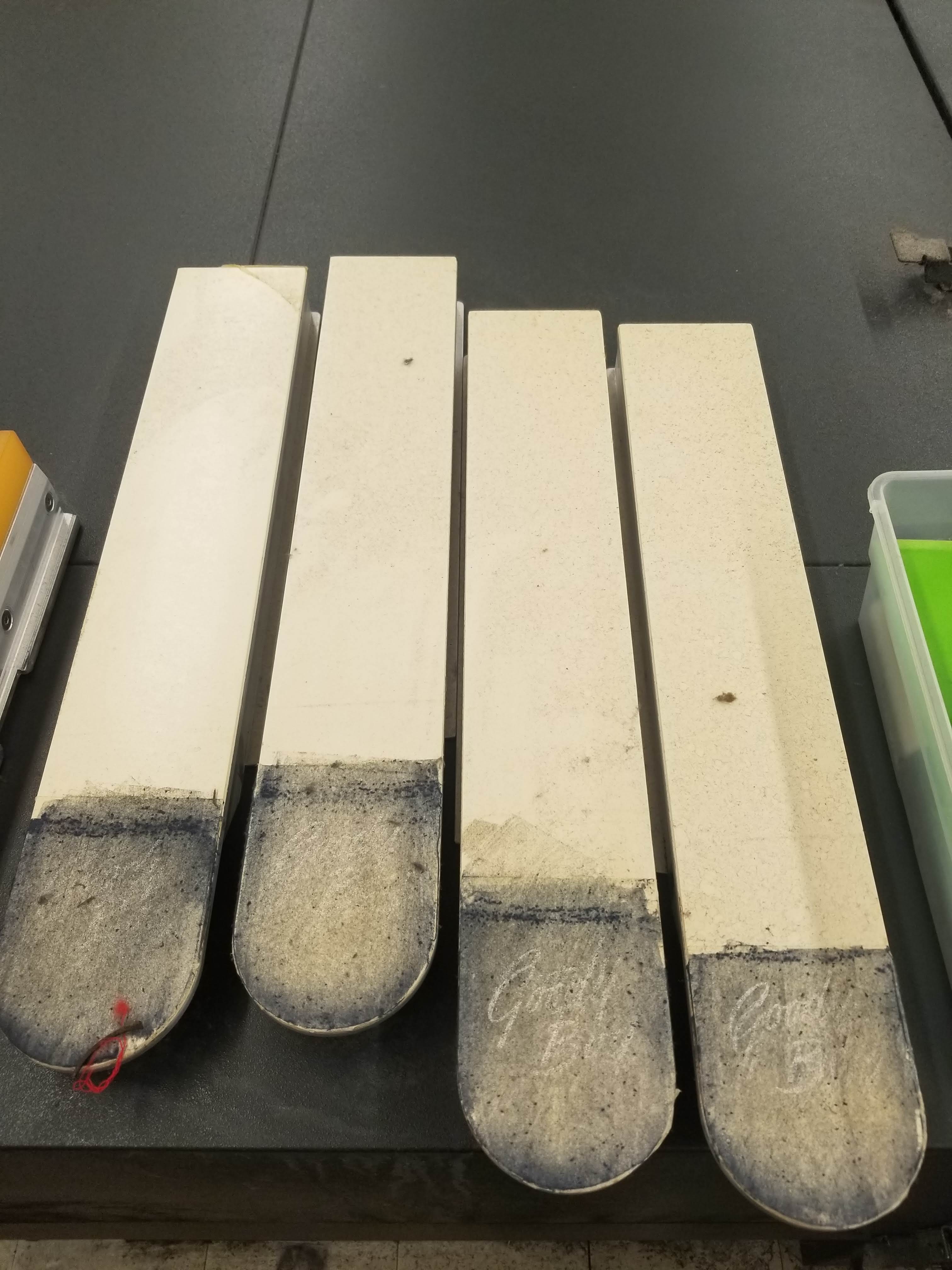

Custom M&R Pallet Tiers (24 Platens Total): Set of 8 Youth Pallets, Set of 8 Sleeve/Leg Pallets, and Set of 8 specialized Polo/Quarter-Zip Pallets with integrated zipper relief channels. Also includes the original factory 16"x22" solid aluminum slabs.

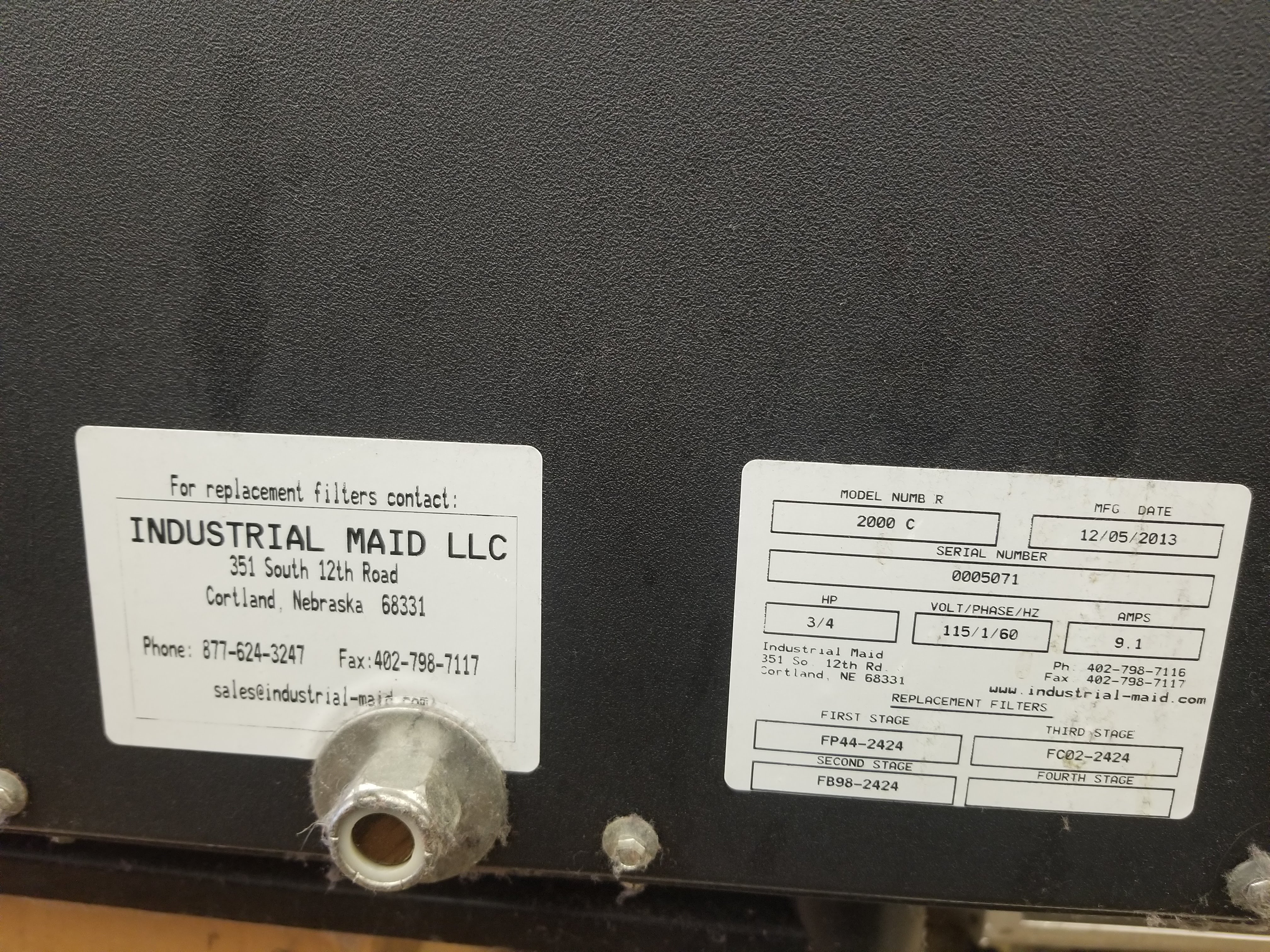

Industrial Maid Air Filtration Unit (Model 2000 C): Commercial environmental air cleaner running on 115V single-phase power to keep lint, plasticizers, and ink smoke out of your shop's breathing air.

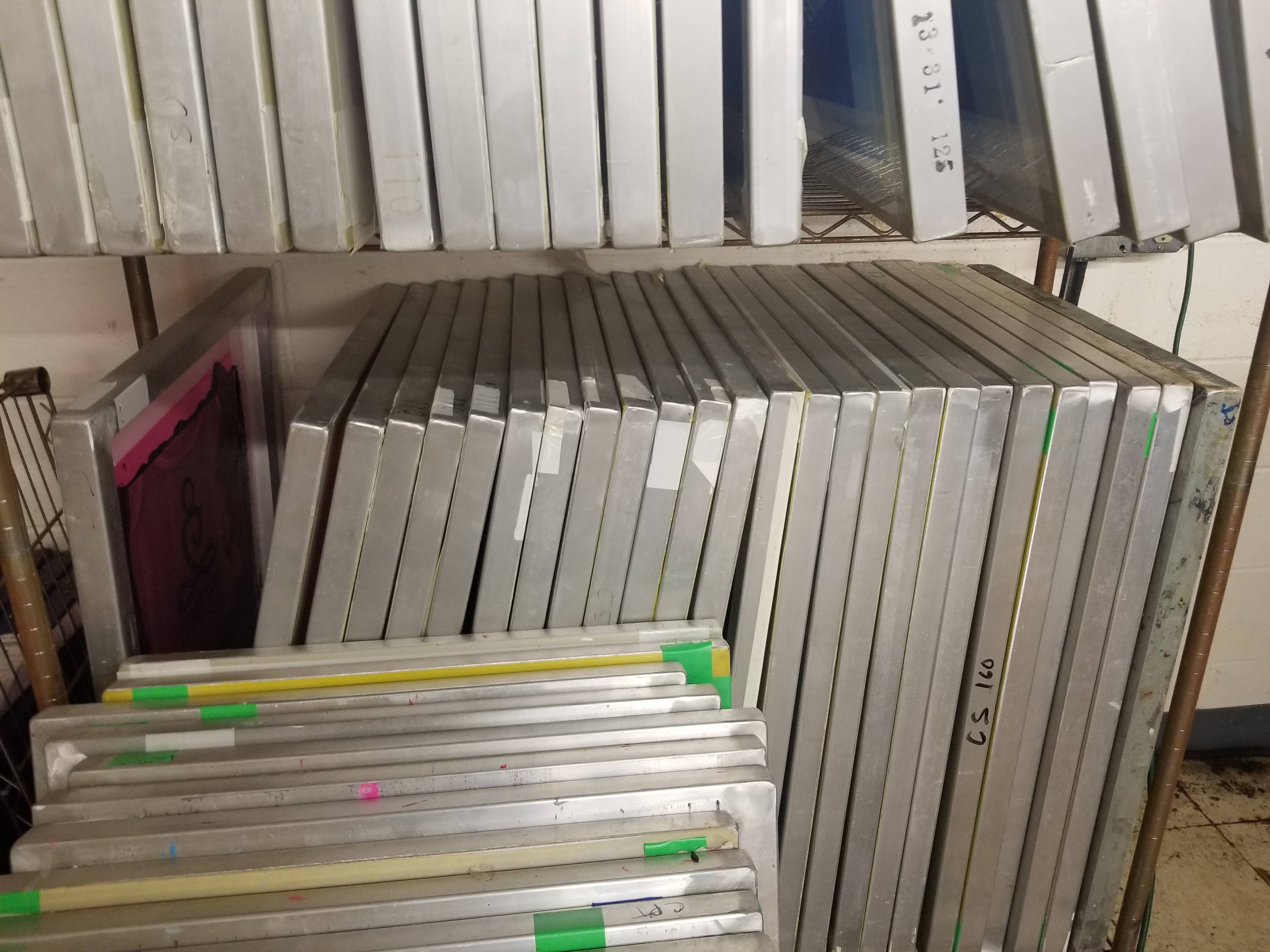

Aluminum Screen Lot: Large production-ready wall lot of standard 23" x 31" OD aluminum frames across a balanced shop mix of 110, 125, 140, 160, and 230 mesh counts (Exact headcount inventory coming soon).
🚚 Shipping, Logistics & Rigging Info
📍 Location: Whitehall (Columbus metro area), Ohio — Zip: 43213. Excellent, direct regional access to I-70 and I-270.
Extraction Note: Ground-level commercial retail shop floor. There is no loading dock. The seller is prepared to completely remove the storefront aluminum door frame and glass panels to provide a wide, unobstructed exit path (same method used during initial installation).
Buyer Responsibility: Professional breakdown, modular splitting, teardown, and rigging are strictly the buyer's responsibility. Equipment cannot be moved whole and must be disassembled on the sales floor.
Recommended Logistics Brokers: Regional/Nationwide flatbed coordinates are commonly routed via Con-Way Freight or automated broker tools like FreightQuote by C.H. Robinson.
💰Commercial Equipment Financing Info
Specialized used textile equipment leasing companies can structure monthly lease-to-own terms on this equipment to preserve your shop's working capital. Popular industry-specific lenders include:
Beacon Funding: Highly active in the screen printing industry; specializes in financing used M&R lines.
Geneva Capital: Excellent for quick turnarounds on commercial apparel machinery loans.
📁 VIEW HIGH-RESOLUTION PHOTOS, MECHANICAL DATA PLATES, AND OPERATIONAL COUNTER VISUALS HERE:
👉https://photos.app.goo.gl/unGYe94dtHUGdNXSA
