Jun 17, 2026 I am selling this Toyota Expert ESP 9000 Embroidery machine after having only used it about 6 times in the last 6 months. I wanted a hobby when I retired and decided on embroidery. I didn't do my homework or else I would have clearly seen that this machine was an industrial/commercial, heavy duty, and high-volume output embroidery machine. It's way too much machine for an embroidery hobbyist like me. I had the expert Toyota Embroidery Machine Repair Man do a full and complete maintenance on it. He said that this machine is in mint condition and stitches like it was new.
The Toyota Expert ESP 9000 Embroidery Machine is a high-quality, electronic-controlled machine with a single head and 15 needles, designed for professional embroidery applications. Made in Japan, this unit offers precision and efficiency for all your embroidery needs. Perfect for businesses in the textile and apparel industry, this machine is a reliable and durable option for creating intricate designs with ease.
Features of the Toyota Expert ESP9000:
Needles & Speed
• 15 needles with automatic color change
• Sewing speed: 120 to 1,200 stitches per minute
• Automatic thread trimming
Stitching Capabilities
• Stitch length: 0.004” to 0.5” (0.1mm to 12.7mm)
• Embroidery field: 14.2” X 19.7” (360mm x 500mm)
• Memory capacity: up to 280,000 stitches / 99 designs
Safety & Sensors
• Upper and lower thread break sensors — automatically stops and beeps when thread breaks
• Face cover safety lock — machine only operates with cover closed
Control Panel
• LCD display showing production data, stitch count, and lubrication alerts
• Multi-language display
• Trace function — confirms pattern size before embroidery begins
• Satin stitch length adjustment in 5 increments
• Hoop offset/move function for applique work
• Memory retention after power loss
Versatility

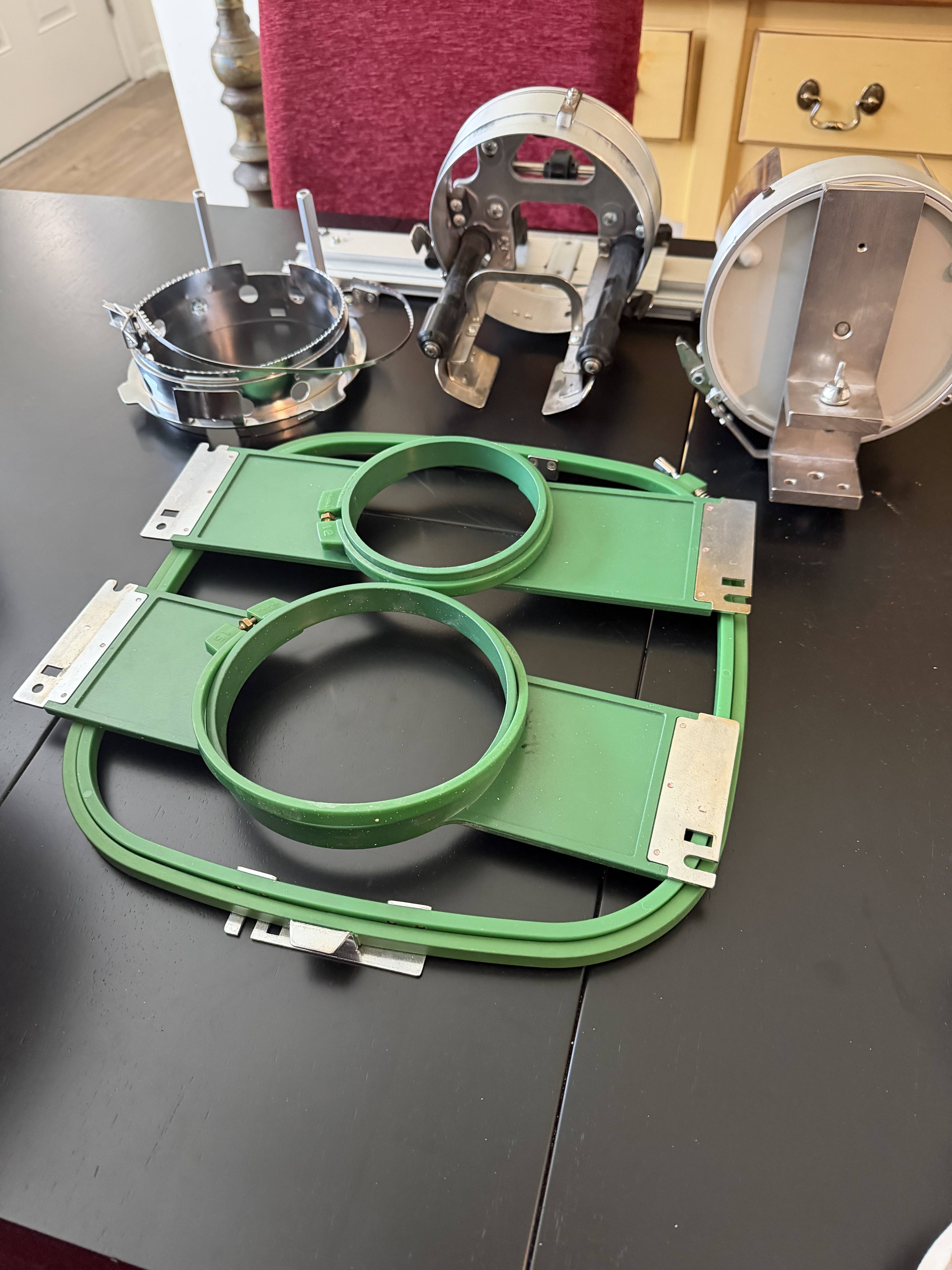

• Handles flat items, caps, tubular garments, and cylindrical objects
• Quick changeover between tubular and cap embroidery
• Reads .DST file format via 3.5" floppy disk drive
Physical
• Machine Only Dimensions: 33.5”H X 29.5”W X 29.1”D (850mm x 750mm x 740mm), Weight: ~178 lbs (82kg)
• Machine & Stand Dimensions: Approx 72"'H X 30"W X 30"D; Total Weight: Approx 250 lbs
• Belt drive system for reduced noise and vibration
• Portable — fits through standard doorways and in compact vans
• Made in Japan by Aisin Seiki Co., Ltd.
