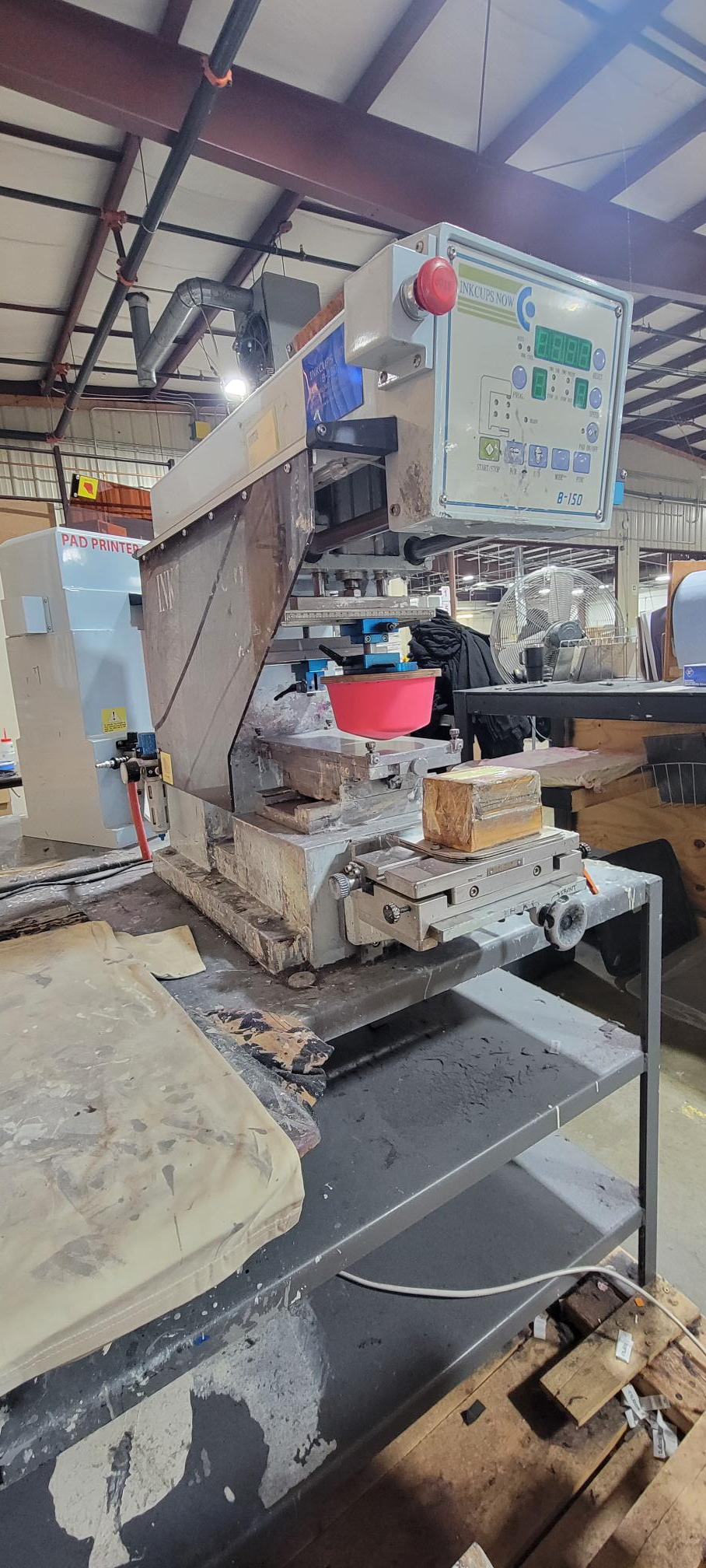

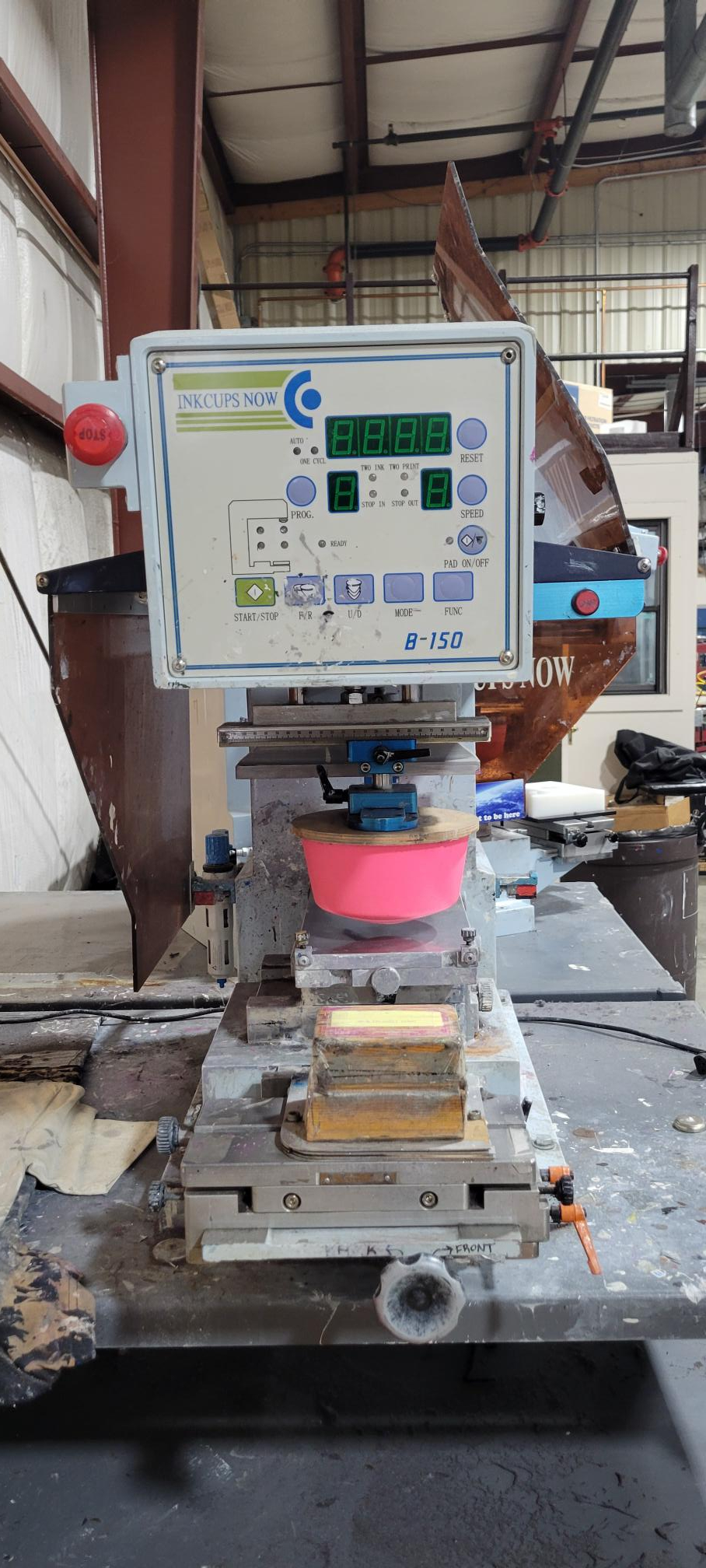

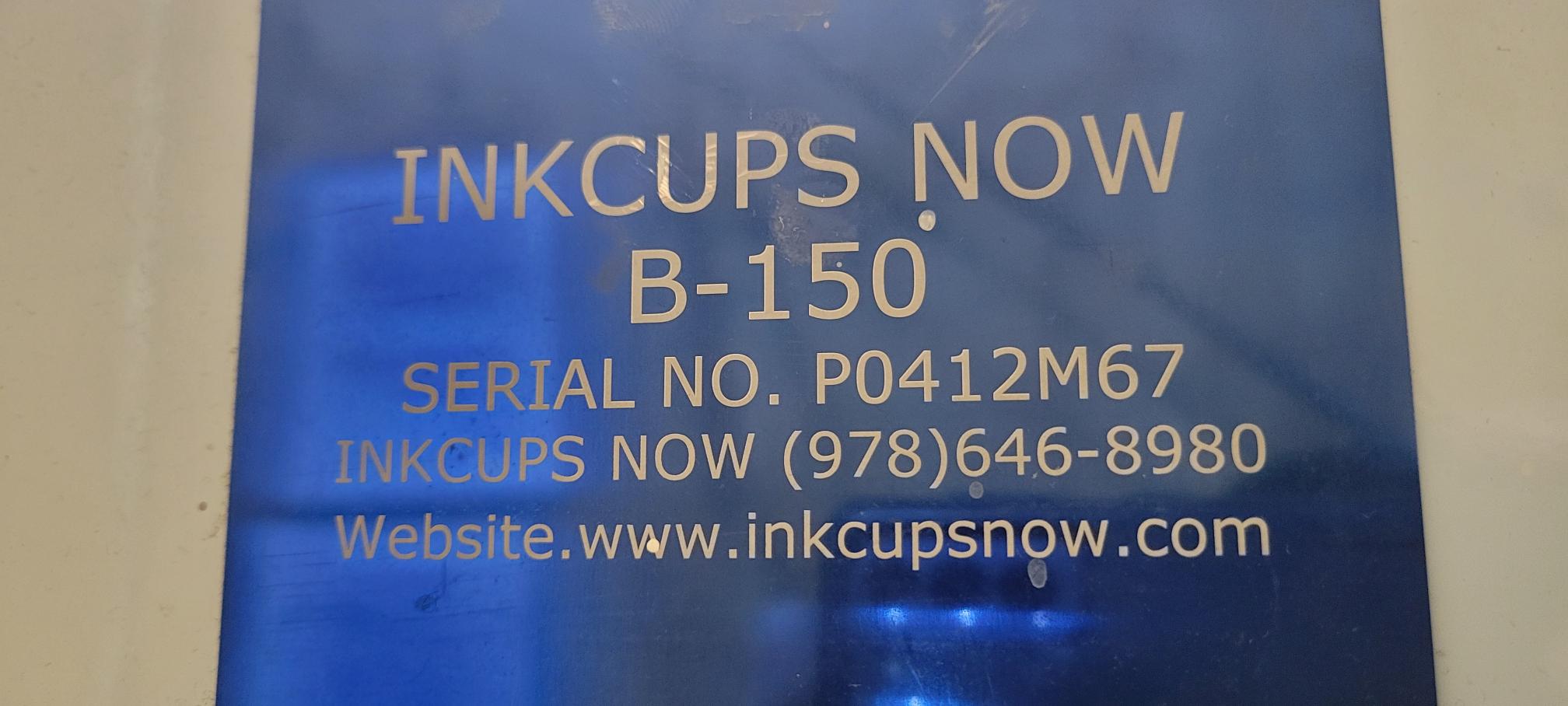

Two B-150 ink cups pad printers for sale
Max image area 140mm (5.51” Diameter)
Machines are a bit ‘inky’ but operate fine. We switched to a rapid tag machine.
Looking for $1000 each or best offer – crate and ship cost extra.
Power Requirements & Dimensions and Specifications:
Current / Voltage: Single Phase / 50-60 Hz) 5/110
Pad Pressure: 779 lbs at 100 PSI
Air Consumption at 800 IPH: 0.88
CFM Air Consumption at 2000 IPH: 2.2 CFM
Approx. Weight (lbs.) Net/Crated 260/305
Machine Dimensions: 25”L X 14”W X 21” H
150mm VersaCup ink cup assembly (patent pending)
Electro-pneumatic control
Photopolymer, steel & laser plate capable
160mm X 360mm magnetic sub-plate
Heavy duty bench top construction
Max image area 140mm (5.51” Diameter) 800-2000 prints / hour
Heavy duty foot pedal with safety guard Membrane touch panel
Variable cycle delay
Illuminated plate area
Variable inking & print frequency
